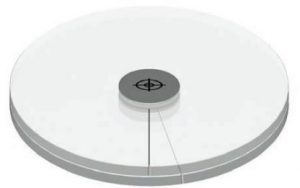

AIM SNAP
INTERNATIONAL SPECS
| Model# | Code | Lumen
Transmission |
Beam Angle | Max Deflection |
| AC-AM-0020-00 | 03255 | 85% | 13° | 20° |
Suggested method of use:

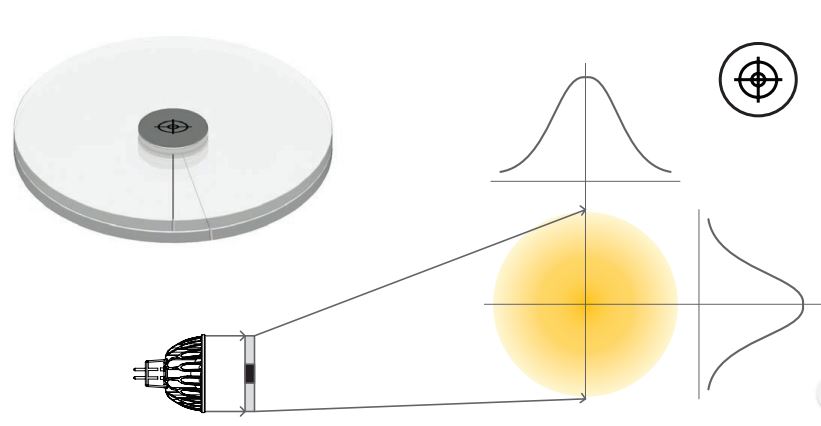

Use the orientation lines to adjust beam deflection angle.
|
 |
 |

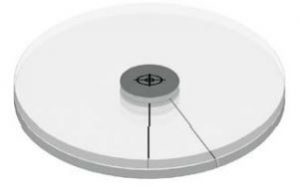

| Narrower angle between orientation lines results in more deflection |
Wider angle between orientation lines results in lesser deflection |

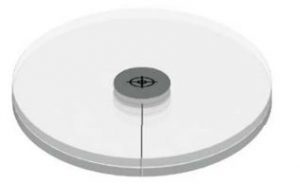

Stacked orientation lines will result in undesirable optical artifacts. Rotate one lens slightly to mitigate. |
