Cantax Recessed spotlights, recessed floodlights, recessed wallwashers

Minimalism in the system

Individually adjustable recessed spotlight with differentiated light distributions

With the Cantax recessed luminaire, ERCO has added a new version to this successful range of track spotlights.
Clear lines, brilliant light and precise light distributions set this luminaire apart as the ideal lighting tool for shops and museums.
In high and low rooms, different sizes and shallow recess depths facilitate the integration into the ceiling.
Thanks to the tiltable and rotatable luminaire head, the recessed spotlight can be adjusted

individually. The highly efficient system consisting of collimating and interchangeable Spherolit lenses provides the designer with a wide variety of light distributions – be it for precise accent lighting using narrow spot, the washlighting of horizontal product displays with oval flood or the uniform illumination

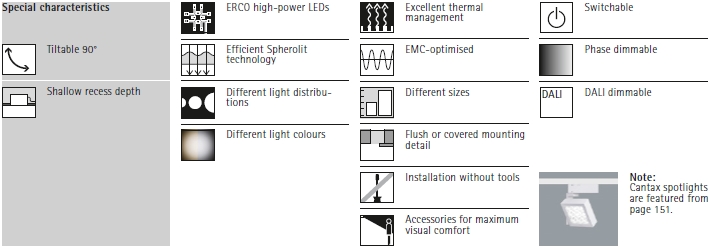

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

1 ERCO Spherolit lens

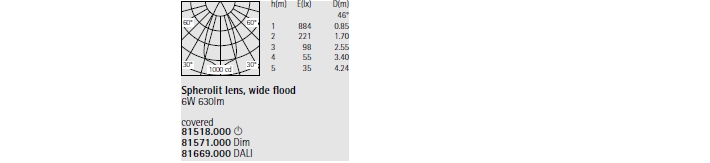

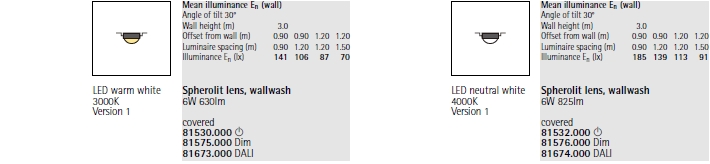

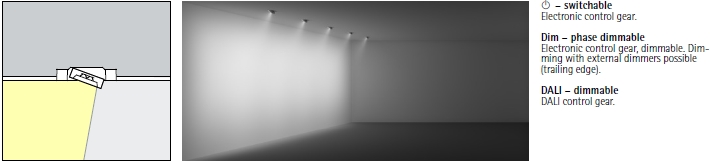

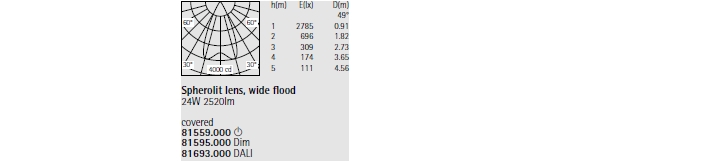

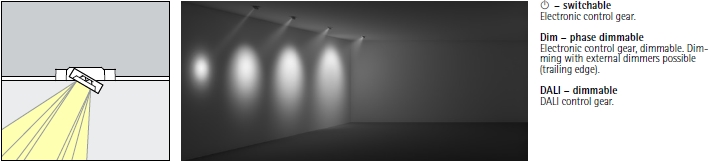

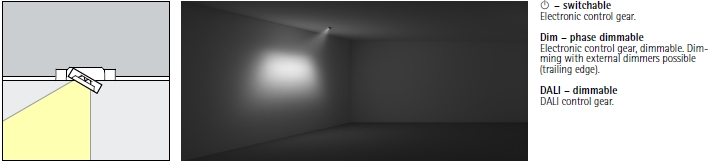

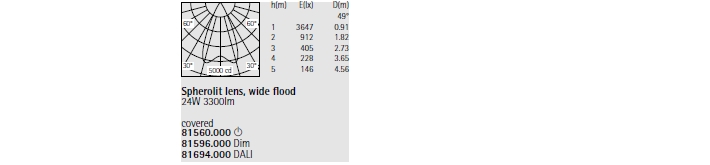

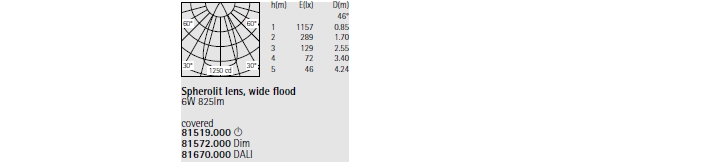

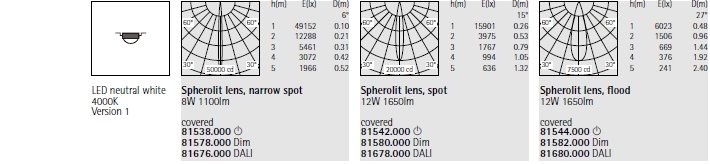

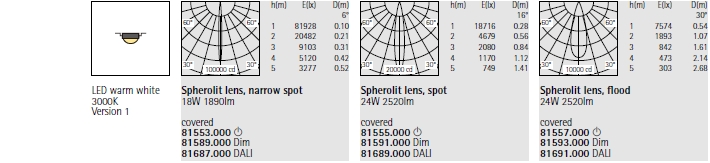

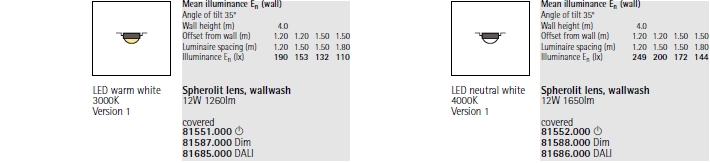

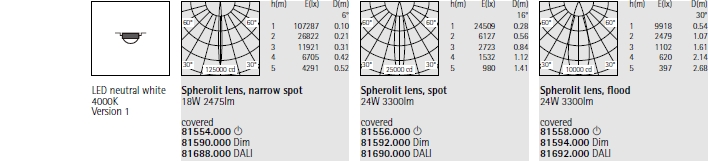

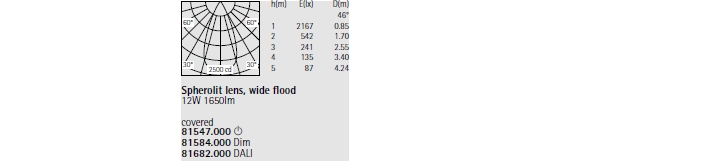

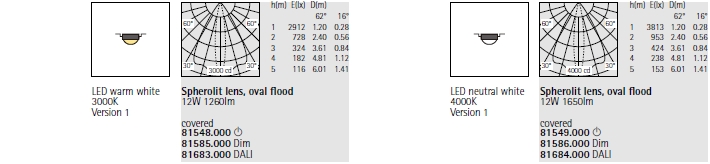

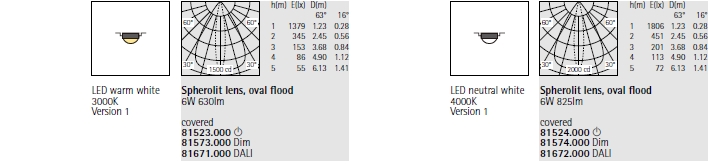

– Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash

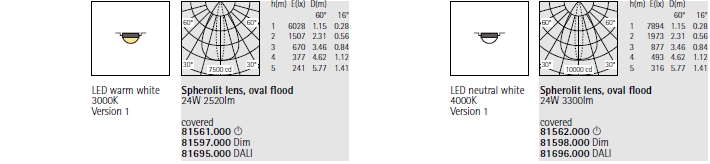

– Oval flood mountable turned through 90°

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white or neutral white
– Collimating lens made of optical polymer

3 Flush cassette
– Polymer, white

4 Mounting ring
– Covered mounting detail
– Fixing for ceiling thicknesses of 1-30mm
– Polymer, white

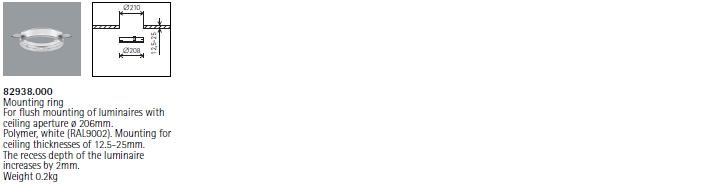

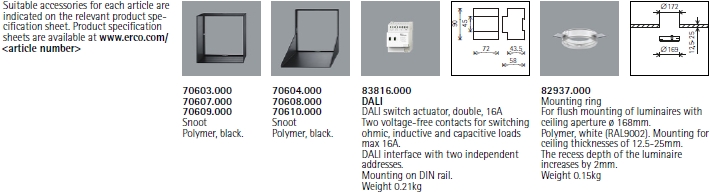

– For flush mounting: mounting ring to be ordered separately, mounting for ceiling thicknesses of 12.5–25mm

5 Luminaire
– White (RAL9002)
– Cast aluminium, powder-coated
– 0°-90° tilt, 360° rotation
– Frame: polymer

6 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version: dimming with external dimmers possible (trailing edge)
