Compact Recessed luminaires

Efficient and economical

Its combination of visual comfort and recess depth is unique. Compact breaks new ground in illumination – Compact, simply unique

New possibilities arise when people break new ground. Compact is a previously unseen combination of excellent visual comfort and
particularly shallow recess depth.

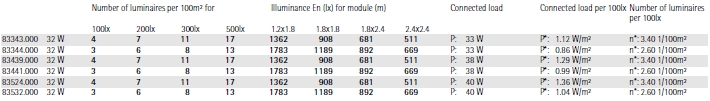

Its different light distributions of extra wide flood and oval flood enable all-round use in offices and administrative buildings as much as in salesrooms.
The luminaire’s unique oval flood beam lends itself particularly to the illumination of tables and traffic

zones. Even broad and uniform illumination of vertical surfaces is possible using the wallwashers.
This provides the creative designer with a range of differentiated lighting tools for efficient visual comfort even in areas where compact downlights are required.

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

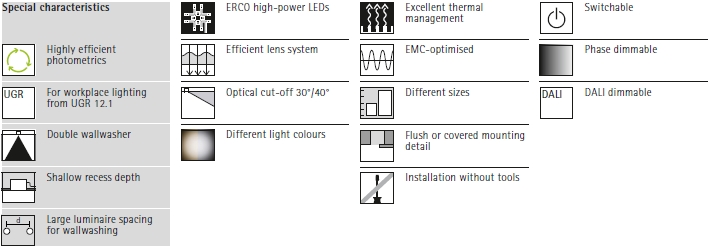

1 ERCO lens system
– Made of optical polymer

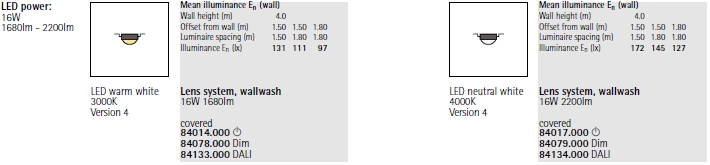

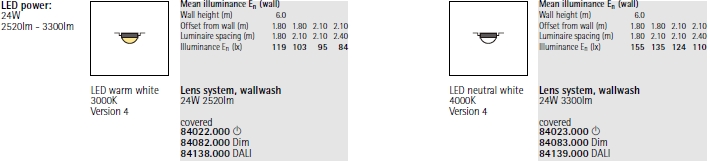

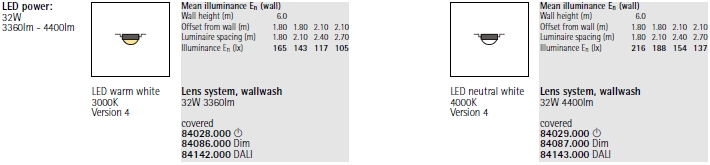

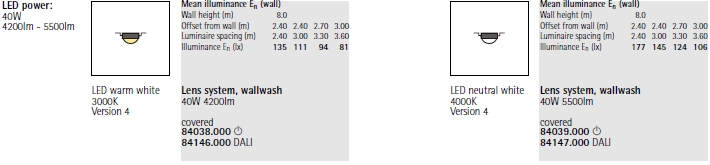

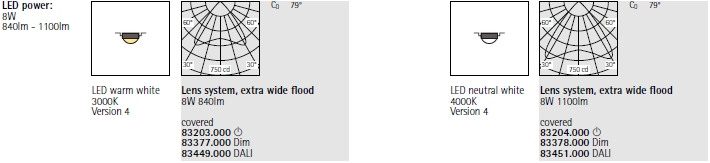

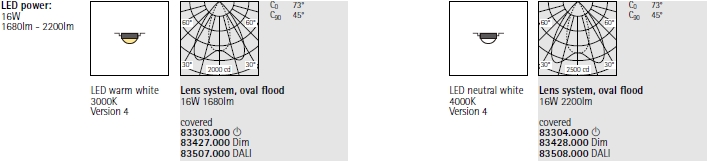

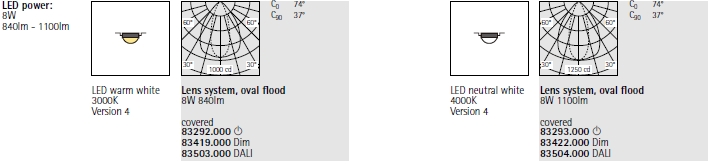

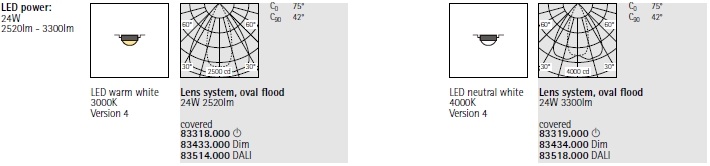

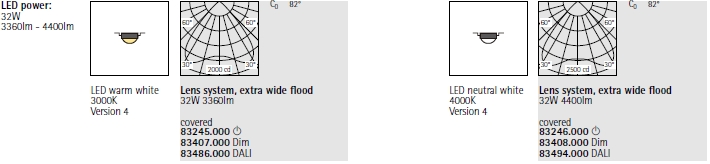

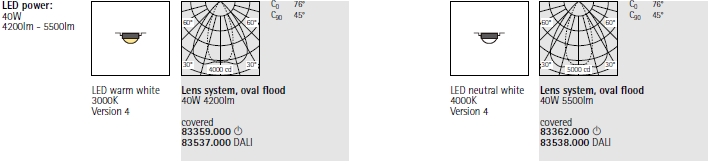

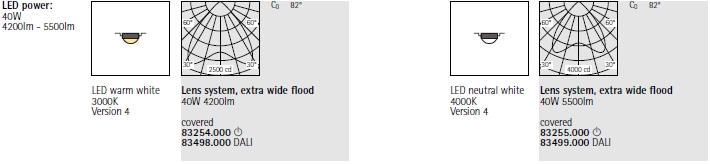

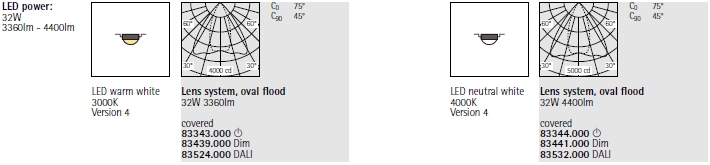

– Light distributions: extra wide flood, oval flood, wallwash or double wallwash

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white or neutral white

3 Anti-glare ring with cross baffle
– Optical cut-off 30°
– Polymer, aluminium vaporised,
silver, ribbed
or
Wallwasher reflector
– Optical cut-off 30° or 40°
– Polymer or metal, aluminium vaporised, silver, ribbed, with diffuser on the underside

4 Mounting ring
– Covered mounting detail
– Mounting for ceiling thicknesses of 1-25mm (sizes 3-4) or 1-30mm (sizes 5-8)
– Polymer, white

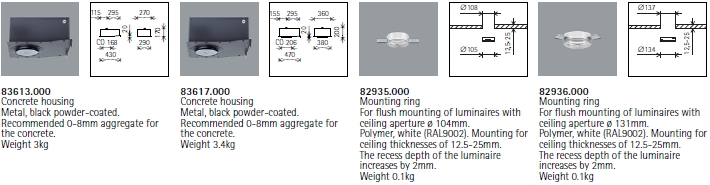

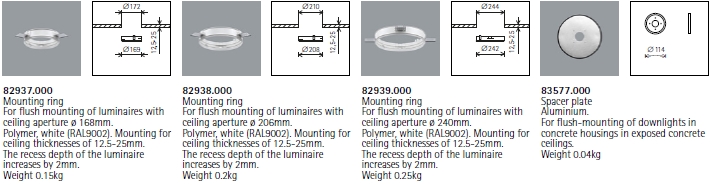

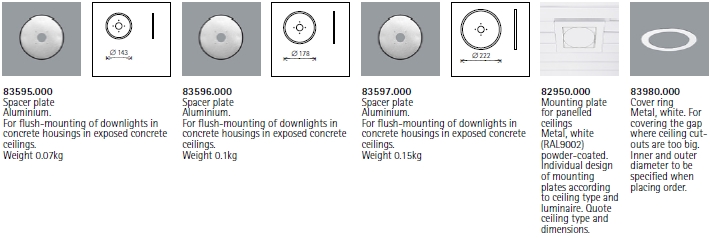

– For flush mounting: mounting ring to be ordered separately, mounting for ceiling thicknesses of 12.5–25mm

5 Housing
– Cast aluminium, designed as heat sink
– Rotatable through 360°

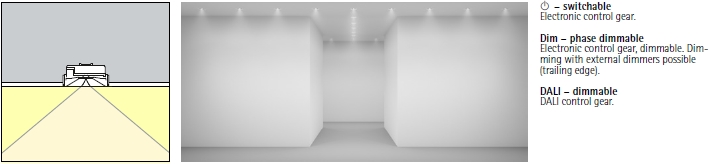

6 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version: dimming with external dimmers possible (trailing edge)
