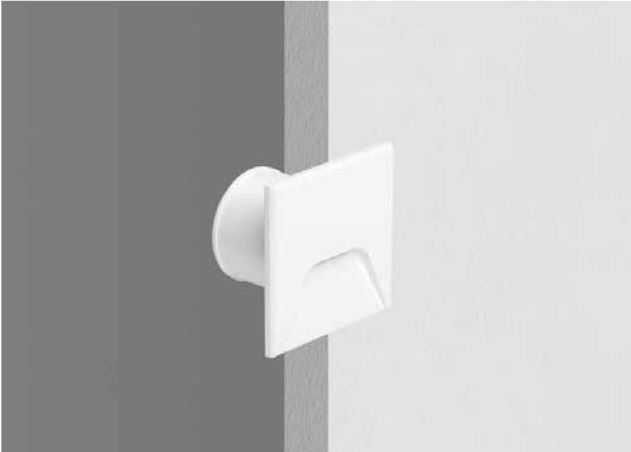

Envelope_1



Simple, elegant and minimalist

Envelope consists of a single compact element, with the screws hidden from view.
The bayonet fitting makes it quick and easy to install, and the casing can be concealed for even greater aesthetic impact. Can also be fitted using a bracket.

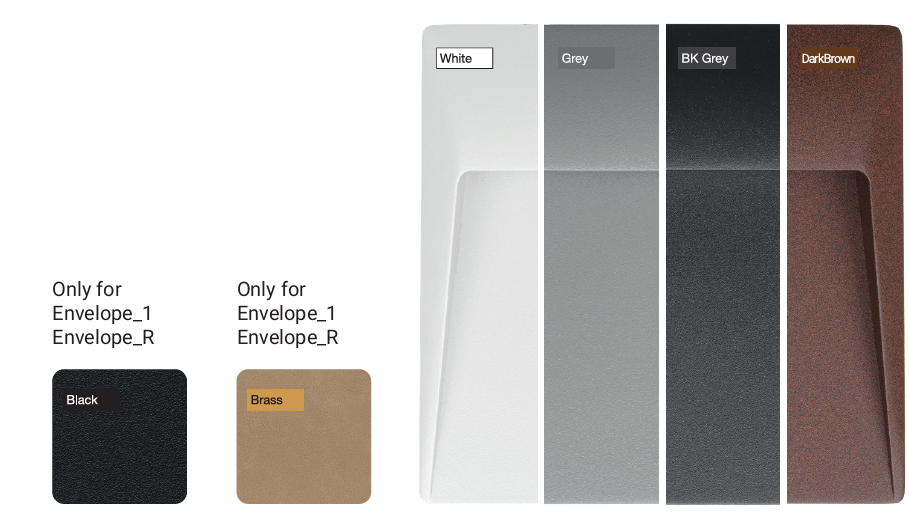

 Finishes

• white RAL9003
• classic grey RAL9006
• anthracite grey RAL7021
• dark brown
• black
• bras

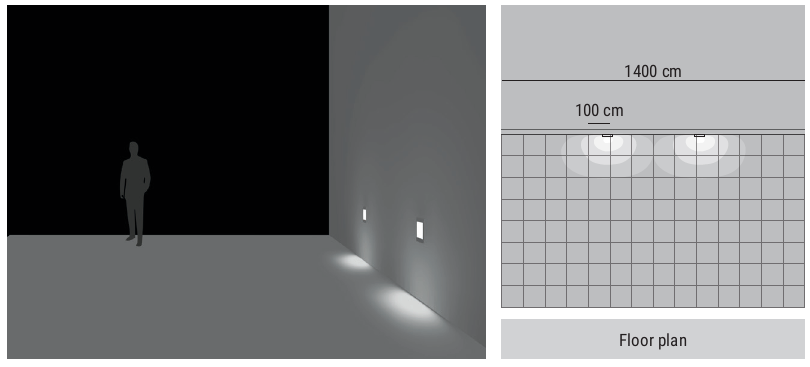

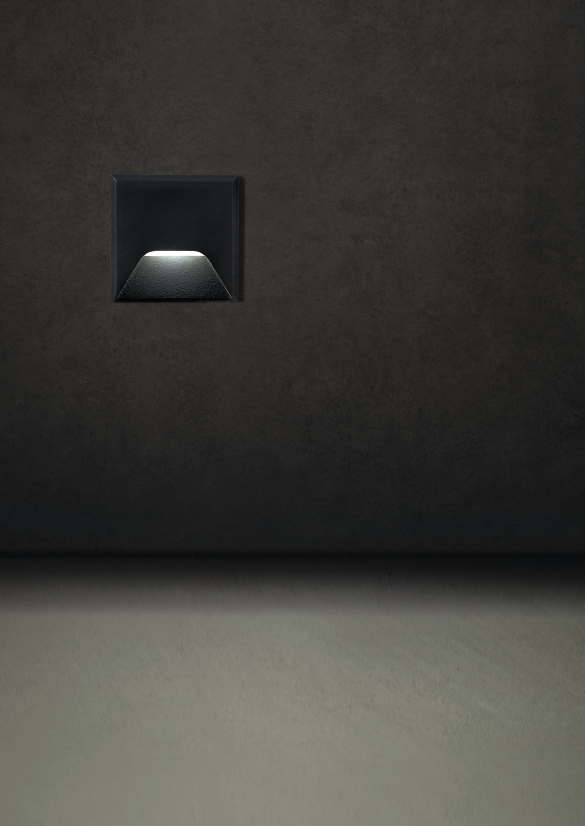

 Recessed optic, asymmetric design

The recessed source is hidden from view, so the unit offers full cutoff: all you see is the clean, attractive beam.
The slightly asymmetric design directs it towards the path

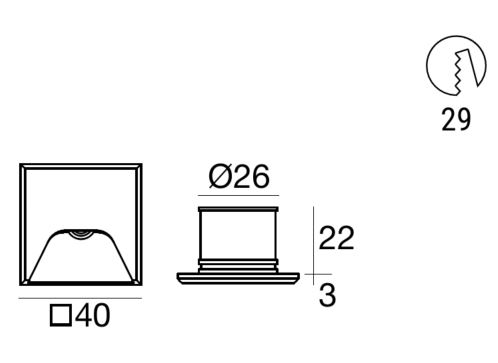

 Envelope_1

Product  Size Watts  CRI 90 CODE Source/
Delivered		 CCT  Optic
1W DC,
350mA		 C00227 WH 124 LM /
124 LM		 M
2700		 Ww
(Asym.Ww)
GG
 132 LM /
26 LM		 W
3000
DB
 147 LM /
29 LM		 N
4000

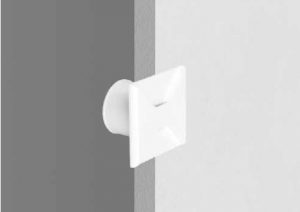

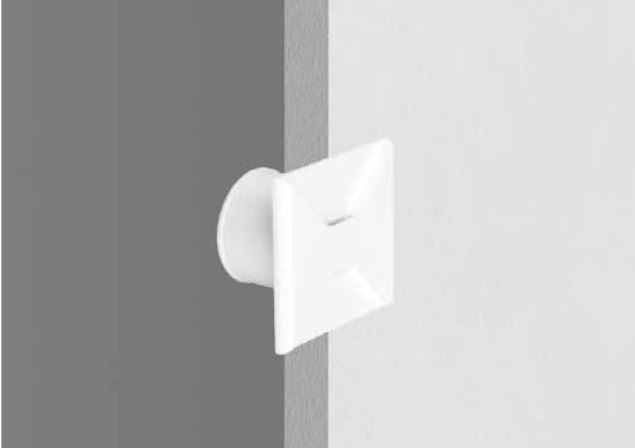

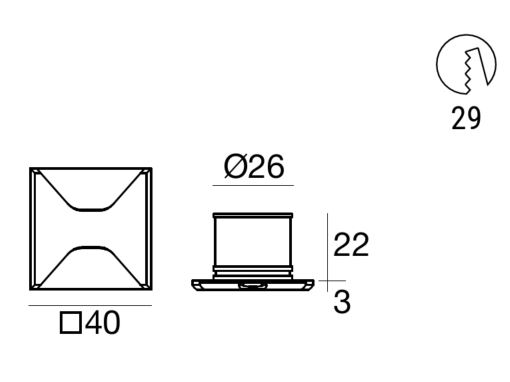

Envelope_2

Product  Size Watts  CRI 90 CODE Source/
Delivered		 CCT  Optic
1W DC,
350mA		 C00228 WH 124 LM /
20 LM		 M
2700		 RB
(Radial bi-direc)
GG
 132 LM /
21 LM		 W
3000
DB
 147 LM /
23 LM		 N
4000

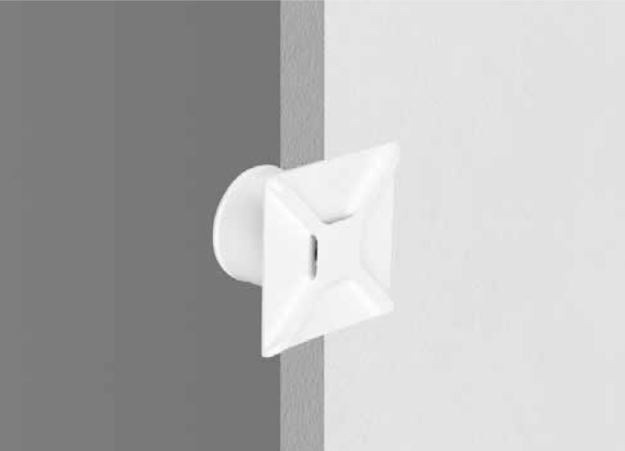

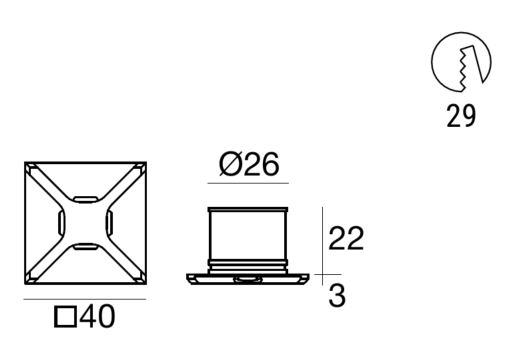

 Envelope_4

Product  Size Watts  CRI 90 CODE Source/
Delivered		 CCT  Optic
1W DC,
350mA		 C00229 WH 124 LM /
30 LM		 M
2700		 RM
(Radial Multi direc)
BB
 132 LM /
33 LM		 W
3000
WB
 147 LM /
36 LM		 N
4000
