Envelope_W
Simple, elegant and minimalist

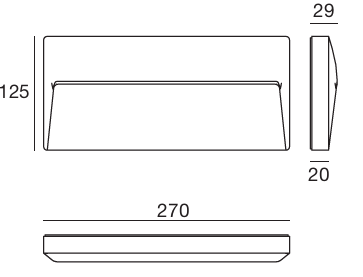

Envelope consists of a single compact element, with the screws hidden from view.
The bayonet fitting makes it quick and easy to install, and the casing can be concealed for even greater aesthetic impact. Can also be fitted using a bracket.
Finishes
• white RAL9003
• classic grey RAL9006
• anthracite grey RAL7021
• dark brown
• black
• bras
Recessed optic, asymmetric design

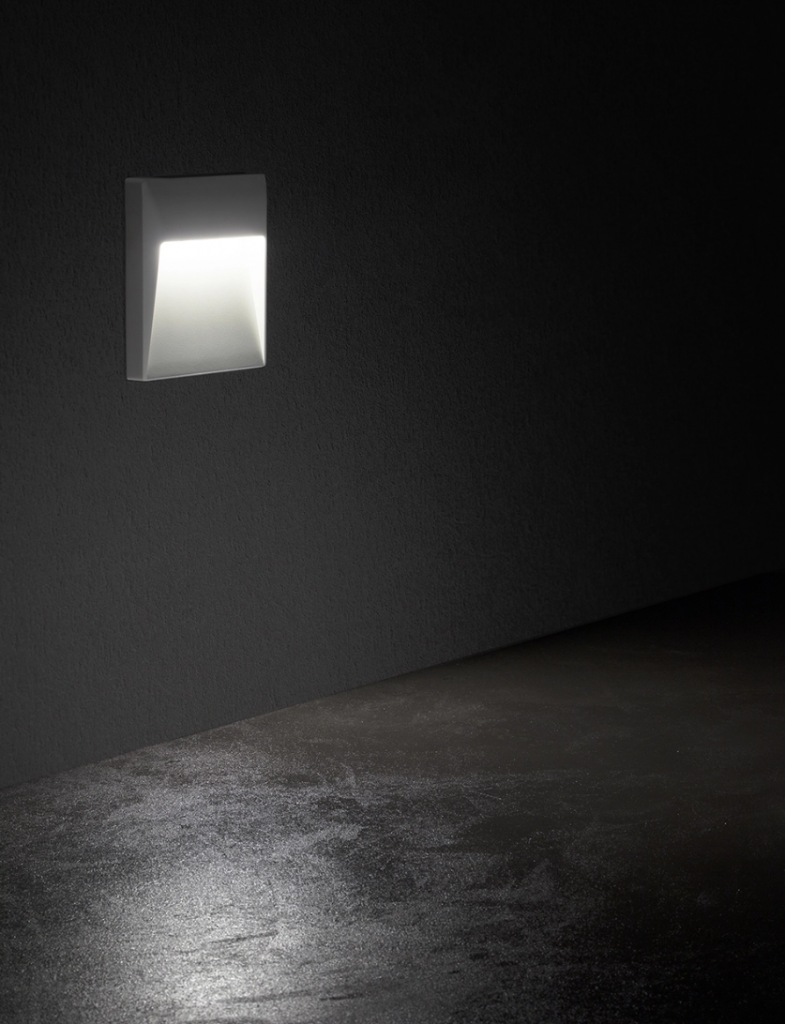

The recessed source is hidden from view, so the unit offers full cutoff: all you see is the clean, attractive beam.
The slightly asymmetric design directs it towards the path
Envelope_W
| Product | Watts | Code | CCT | im S-D | Optic |
|---|---|---|---|---|---|
Envelope_W |
1W,
DC 24V |
97167 |
W-3000 | 136lm-89lm | 07 Asym |
97169 |
N -4000 | 136lm-93lm | |||
81339 |
|||||
81340 |
| Product | Watts | Code | CCT | im S-D | Optic |
|---|---|---|---|---|---|
| Envelope_W (Recessed casing)  |
1W,
DC 24V |
97170 |
W-3000 | 136lm-89lm | 07 Asym |
| 97172 |
N -4000 | 136lm-93lm | |||
| 81341 |
|||||
| 81342 |
| Product | Watts | Code | CCT | im S-D | Optic |
|---|---|---|---|---|---|
| Envelope_W (Recessed casing)  |
6W,
AC 220V |
81343 |
W-2700 | 669lm | 07 Asym |
| 81291 |
W -3000 | 699lm | |||
| 81290 |
N-4000 | 724lm | |||
| 81292 |
| Product | Watts | Code | CCT | im S-D | Optic |
|---|---|---|---|---|---|
| Envelope_W
|
9.5W,
AC 220V |
81344 |
W-2700 | 1115lm | 07 Asym |
| 81294 |
W -3000 | 1166lm | |||
| 81293 |
N-4000 | 1207lm | |||
| 81295 |
| Product | Watts | Code | CCT | im S-D | Optic |
|---|---|---|---|---|---|
| Envelope_W
|
16W,
AC 220V |
81522 |
W-2700 | 1705lm | 07 Asym |
| 81510 |
W -3000 | 1782lm | |||
| 81509 |
N-4000 | 1846lm | |||
| 81511 |
