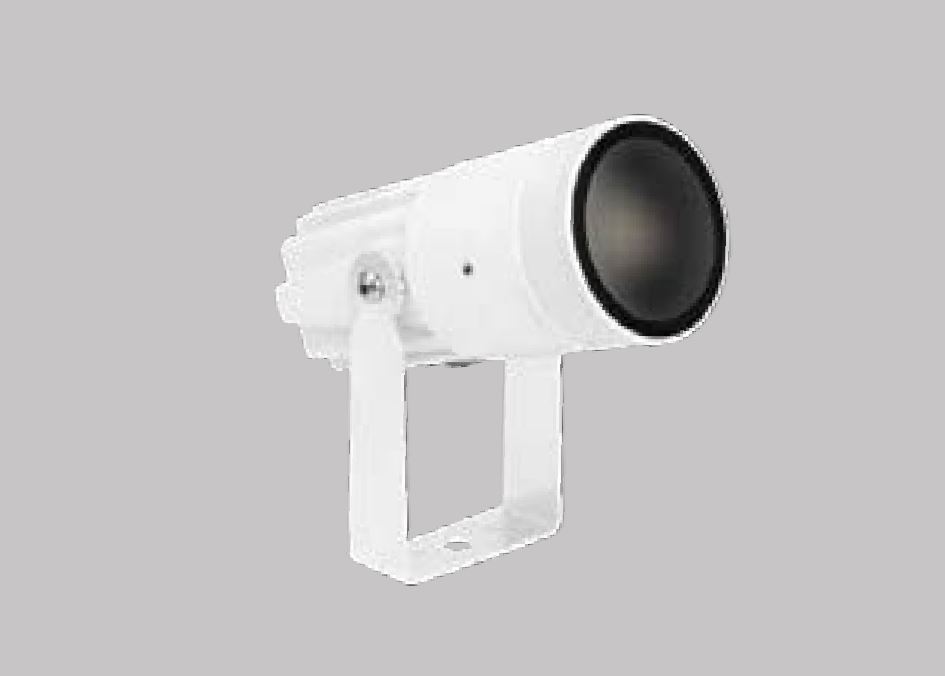

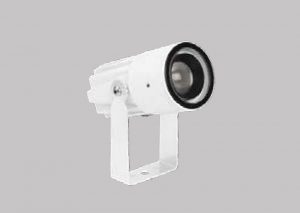

iris67



IP67 versatile spotlight

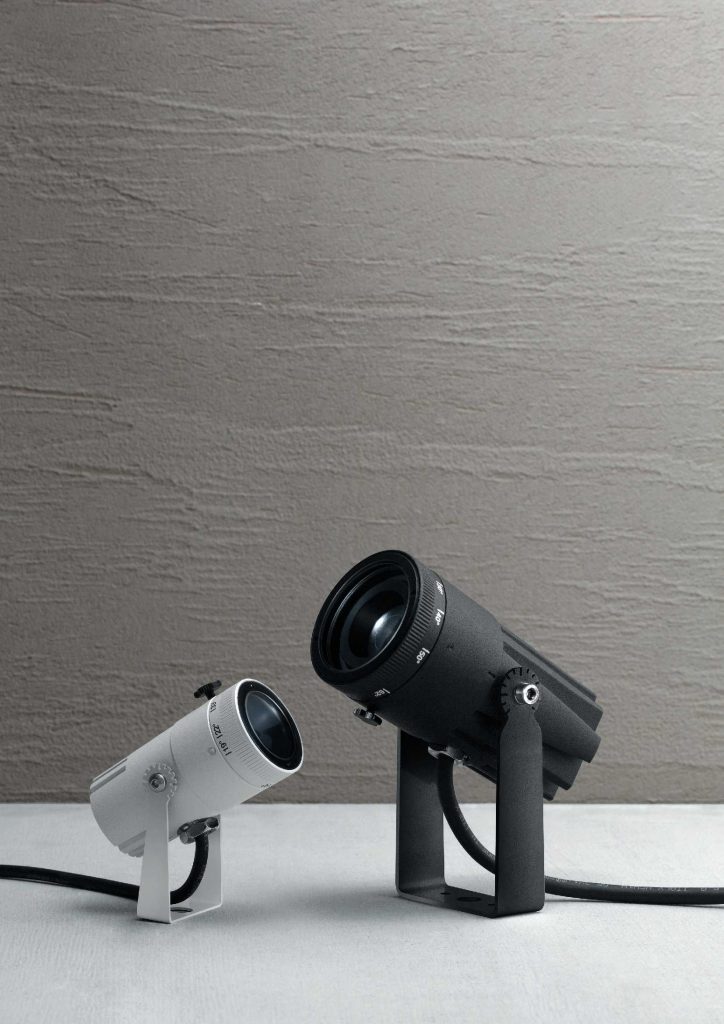

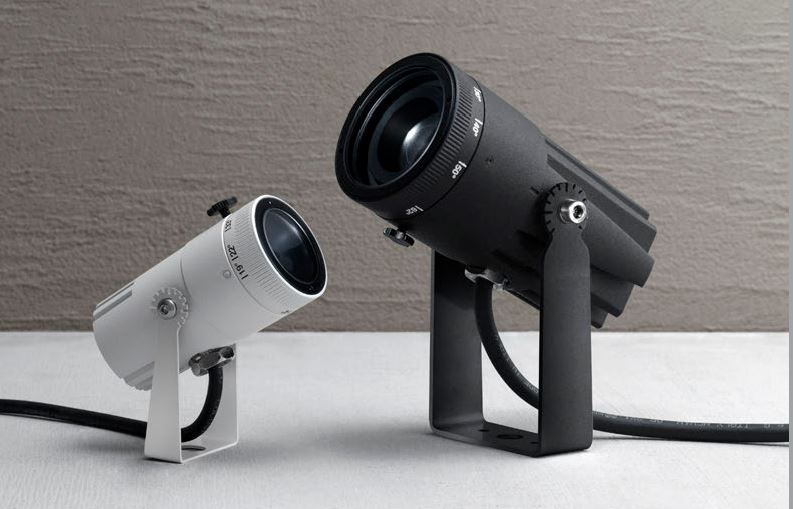

Aesthetically pleasing with minimal forms, Iris67 introduces the possibility of professionally managing the light beam in an outdoor environment, allowing a broad spectrum of lighting situations applicable to decorative elements (statues, installations) and high plants. A device for advanced lighting, IP67 and entirely in aluminium: the concrete and reliable design of Iris67 guarantees maximum protection against atmospheric agents, water (with the exception of immersion) and microscopic particles





Adjustable optics

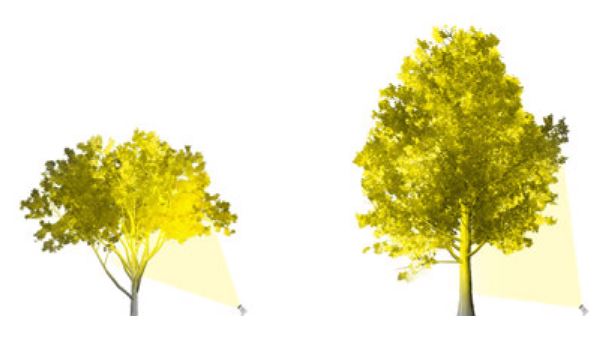

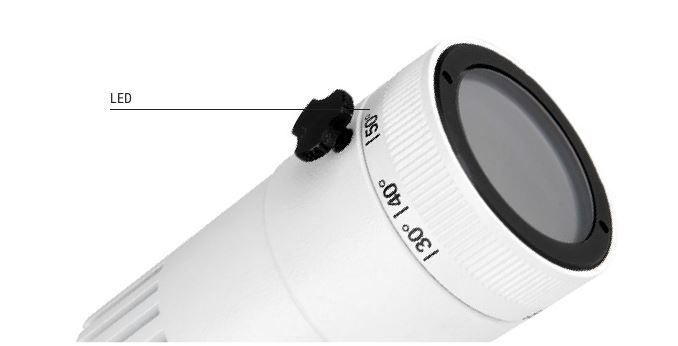

Iris67 allows the light beam to be adapted to the directing needs in outdoor settings in order to adapt to the growth of high trees and/or the enhancement of urban décor elements with different heights and dimensions. Thanks to the graduated focus-on-board ring nut, the beam aperture can be calibrated, variable depending on the selected model, making the directing operation simple and precise. The blocking system of the facilitated focus allows obtaining an opening precisely corresponding to the gradient indicated along the ring nut.







 Dynamic optical range

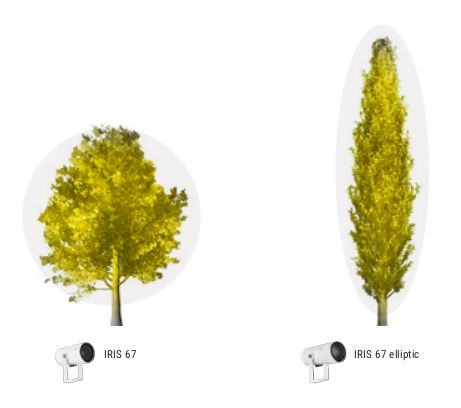

 The Elliptic version is the feather in the cap of the Iris67 family, a new product for that expands the potential of a highly professional outdoor spotlight. In addition to allowing adjustment of the beam aperture, Iris67 Elliptic lets you act on a second ring nut to control the movement of a specific filter placed at the end of the device. Increasing or decreasing the distance of the filter from the main lens, we can change the shape of the light beam, thereby obtaining a perfect elliptical lighting for very high plants or vertical urban elements (for example, signs)










 iris



Product  Size Watts CODE Source/
Delivered		 CCT  Optic

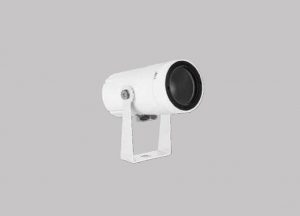

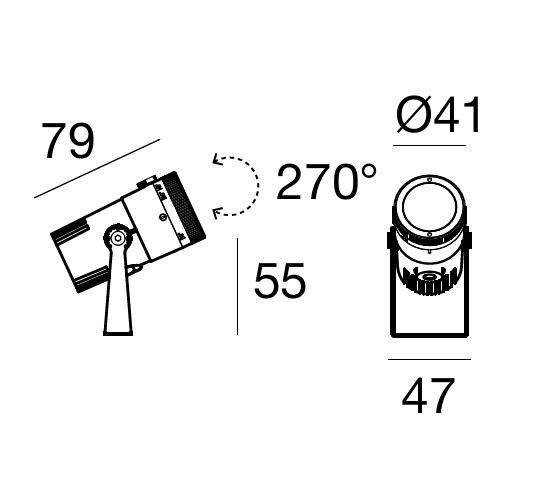

 6W DC,
630mA		 84537 685 LM /
On request		 M
2700		 85
(15°-45°)
84538
 685 LM /
On request		 W
3000
84539 739 LM /
On request		 N
4000

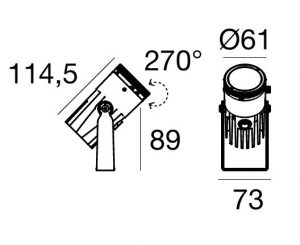

Product  Size Watts CODE Source/
Delivered		 CCT  Optic

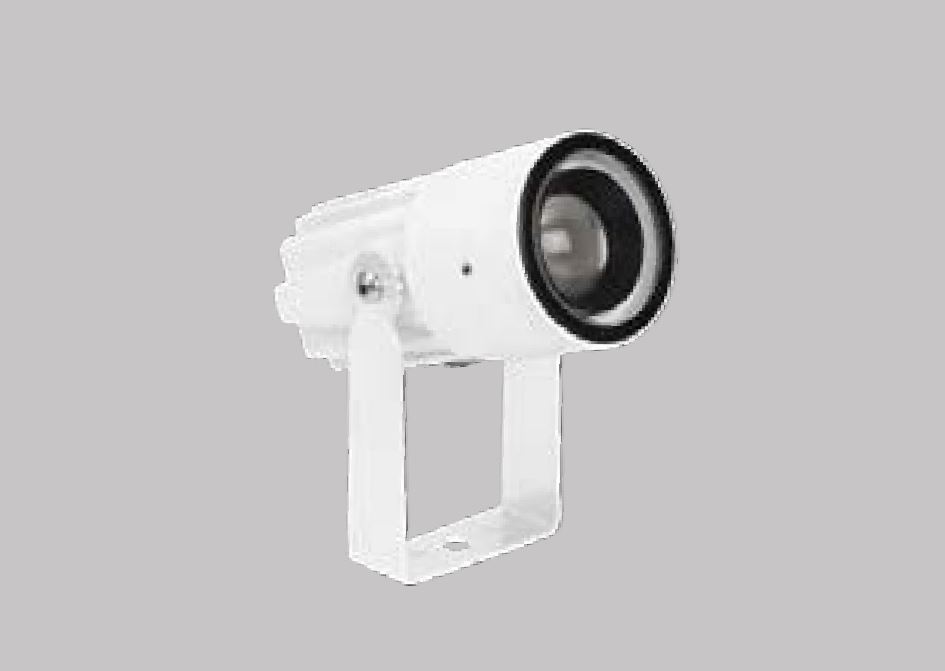

 13W DC,
350mA		 84540 2015 LM /
On request		 M
2700		 85
(15°- 62°)
84541 2100 LM /
On request		 W
3000
84542 2156 LM /
On request		 N
4000

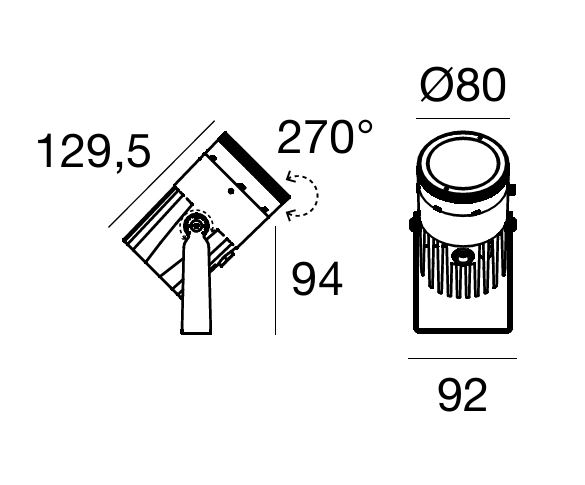

Product  Size Watts CODE Source/
Delivered		 CCT  Optic

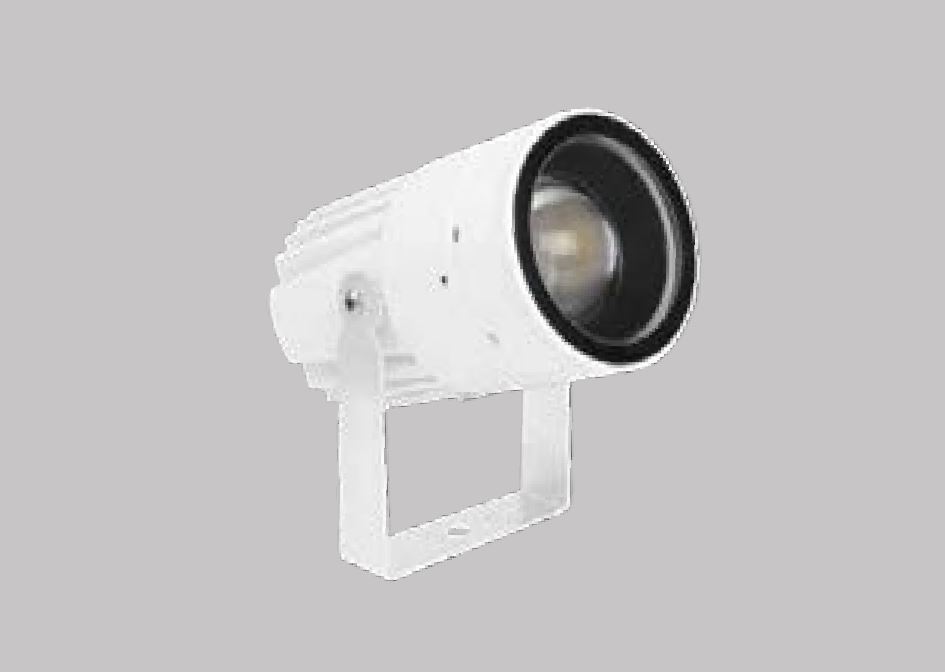

 22W DC,
630mA		 84543 3378 LM /
On request		 M
2700		 85
(16°- 52°)
84544 3593 LM /
On request		 W
3000
84545 3610 LM /
On request		 N
4000







Product  Size Watts CODE Source/
Delivered		 CCT  Optic

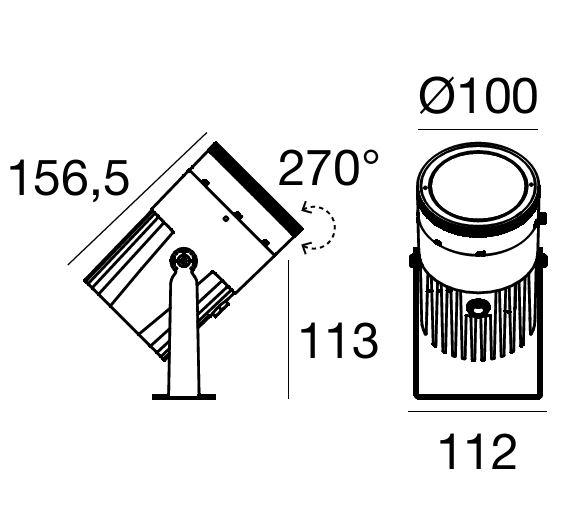

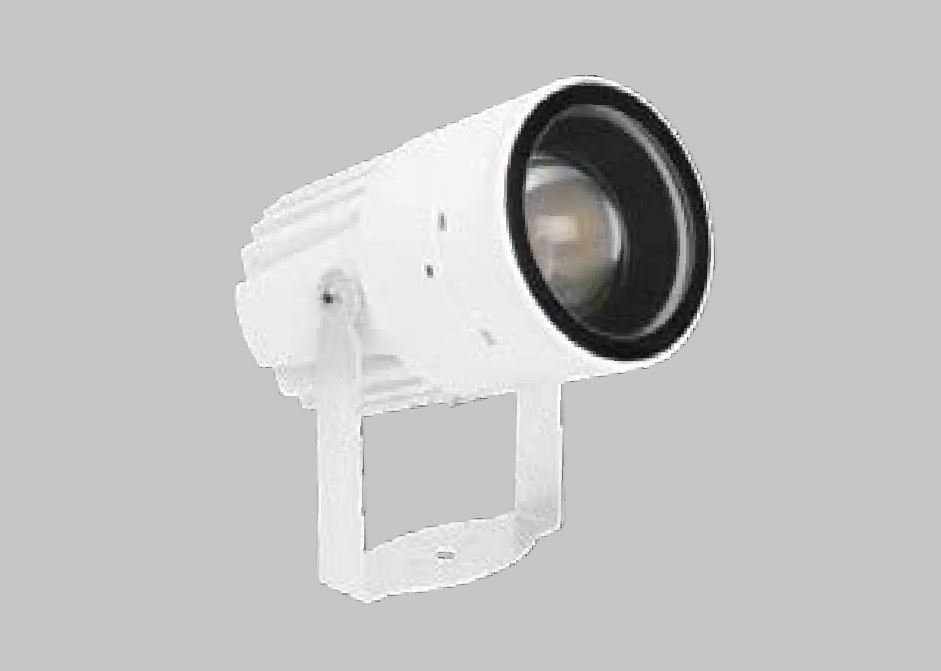

 30W DC,
840mA		 84546 4452 LM /
On request		 M
2700		 85
(15°- 56°)
84547 4741 LM /
On request		 W
3000
84548 4865 LM /
On request		 N
4000

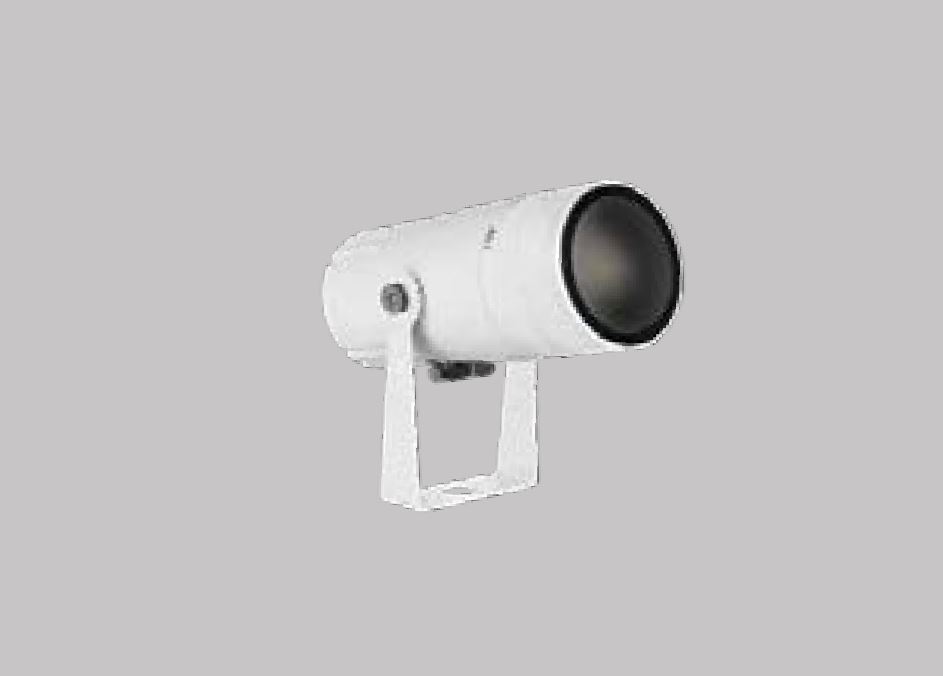

iris67 Elliptic

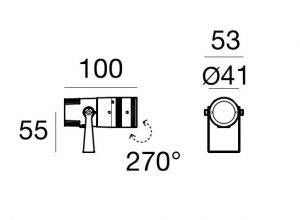

Product  Size Watts CODE Source/
Delivered		 CCT  Optic


 6W DC,
630mA		 84549 685 LM /
On request		 M
2700		 88
(15°- 45°)
84550 685 LM /
On request		 W
3000
84551 739 LM /
On request		 N
4000

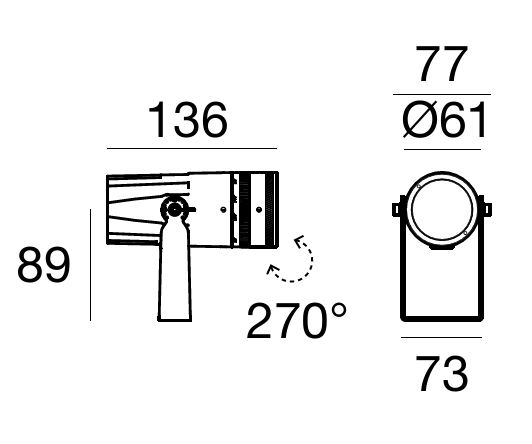

Product  Size Watts CODE Source/
Delivered		 CCT  Optic



 13W DC,
350mA		 84552 2015 LM /
On request		 M
2700		 88
(15°- 62°)
84553 2100 LM /
On request		 W
3000
84554 2156 LM /
On request		 N
4000

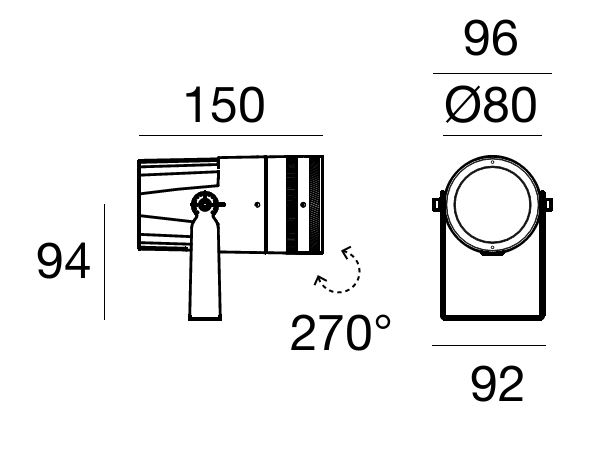

Product  Size Watts CODE Source/
Delivered		 CCT  Optic

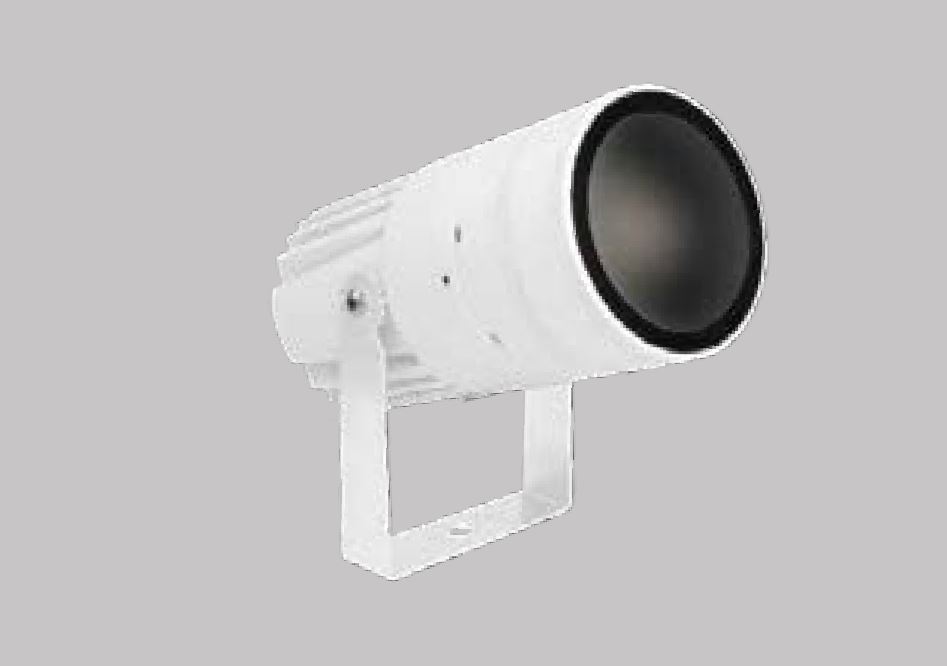

 22W DC,
630mA		 84555 3378 LM /
On request		 M
2700		 88
(16°- 52°)
84556 3593 LM /
On request		 W
3000
84557 3610 LM /
On request		 N
4000

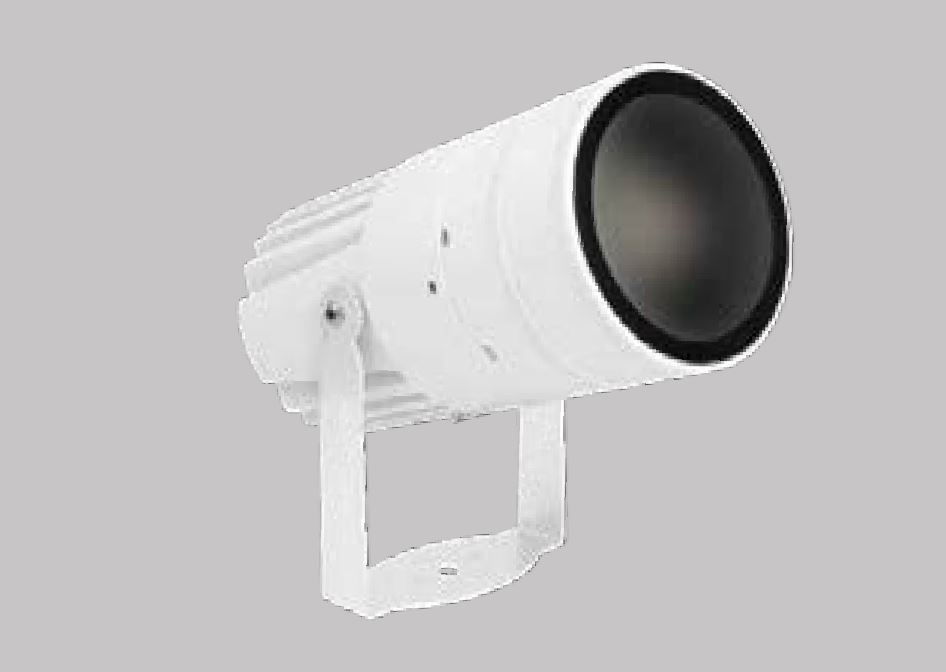

Product  Size Watts CODE Source/
Delivered		 CCT  Optic




 30W DC,
840mA		 84558 4452 LM /
On request		 M
2700		 88
(15°- 56°)
84559 4741 LM /
On request		 W
3000
84560 4865 LM /
On request		 N
4000
