Light Board Recessed floodlights, recessed wallwashers

Perfect floodlighting made easy

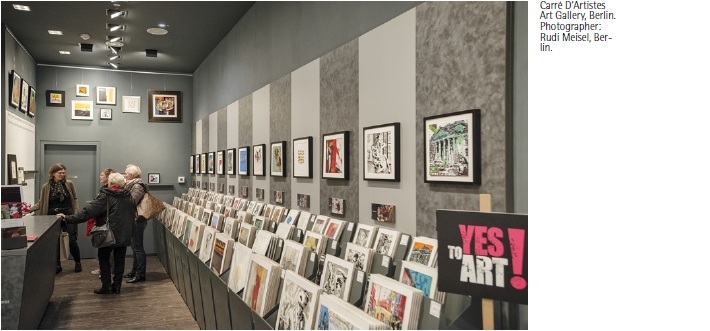

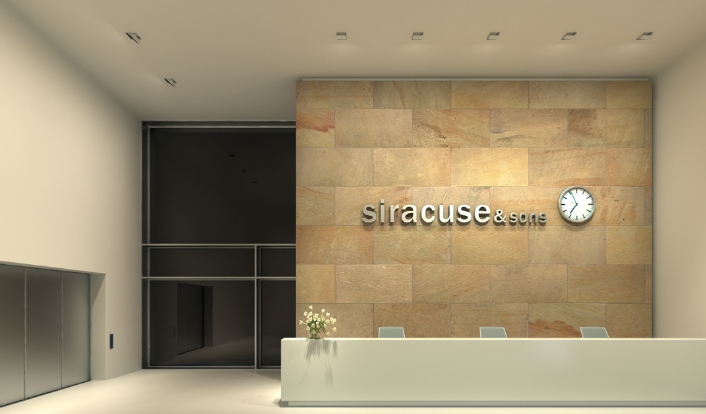

Recessed floodlights and wallwashers with shallow recess depths for sophisticated lighting in museums, galleries and shops

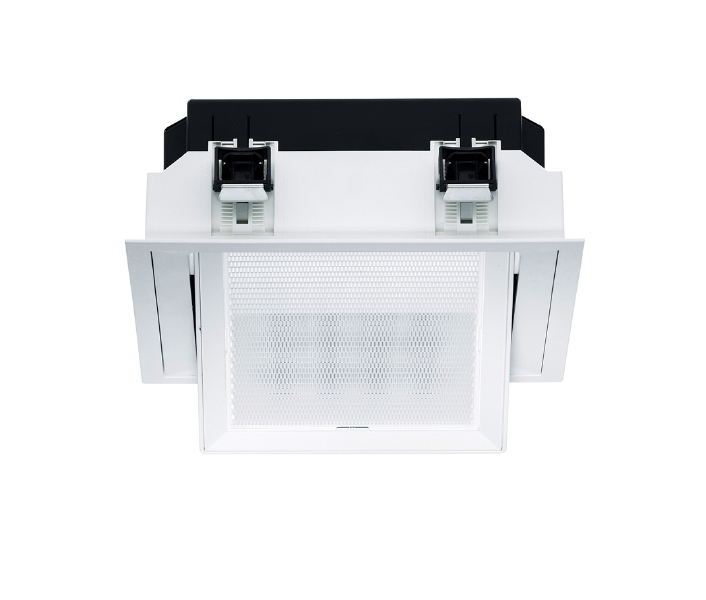

The Light Board recessed floodlight with an oval flood distribution provides uniquely effective illumination for display cabinets and merchandise tables with a distinctive elliptical beam. Walls, shelves or large exhibits are best illuminated using the wallwasher version.
The luminaire can easily be moved into the required position thanks to a very flexible adjustment range.
Use the varychrome RGBW luminaire together with a DALI control

system to bathe walls or objects in coloured light, or, by controlling the colour temperature of the white light, you can optimise Light Board for the colours of the illuminated products or objects.
Modern lighting installation may often benefit from, or even demand, flexible components.
With Light Board, the static recessed versions have flexible, track-mounted equals delivering

design consistency throughout your project.

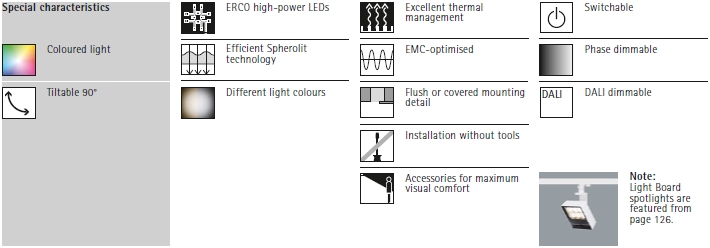

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

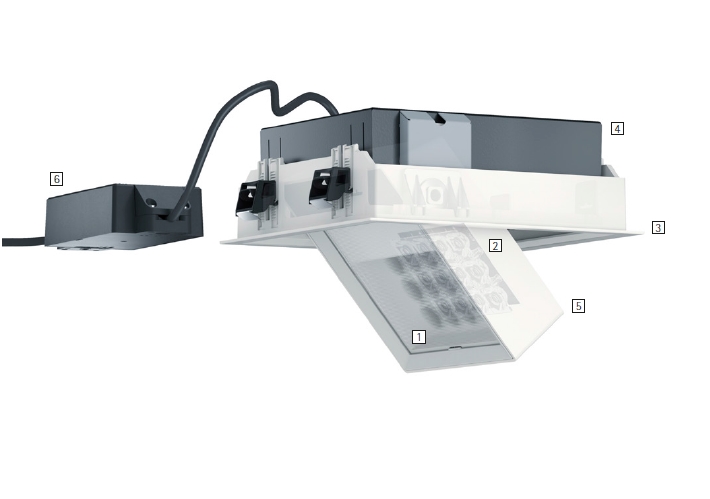

1 ERCO Spherolit lens

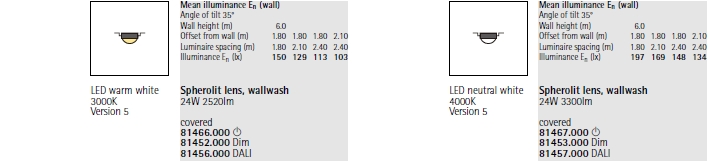

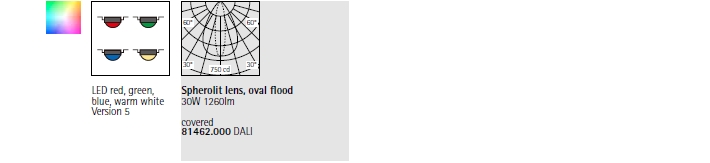

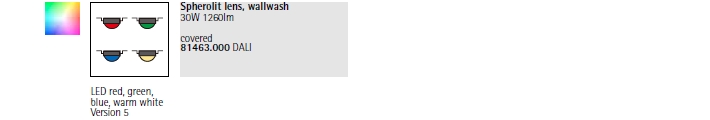

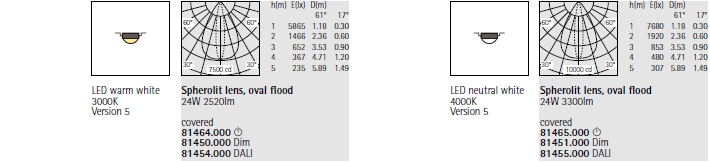

– Light distributions: oval flood or wallwash
– Oval flood adjustable through 90°

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white, neutral white or varychrome RGBW
– Collimating lens made of optical polymer
– Varychrome with highly reflective colour mixer

3 Mounting frame
– Covered mounting detail
– Fixing for ceiling thicknesses of 1-30mm
– Polymer, white
– For flush mounting: Mounting frame to be ordered separately, mounting for ceiling thicknesses of 12.5–25mm

4 Recessed housing
– Metal, black

5 Floodlight, wallwasher housing
– White (RAL9002)
– Cast aluminium, powder-coated
– 0°-90° tilt
– Front cover: polymer

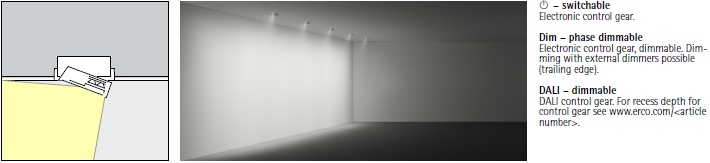

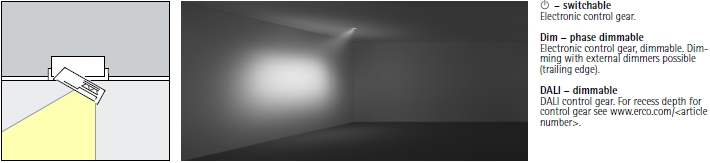

6 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version:
Dimming with external dimmers possible (trailing edge)
