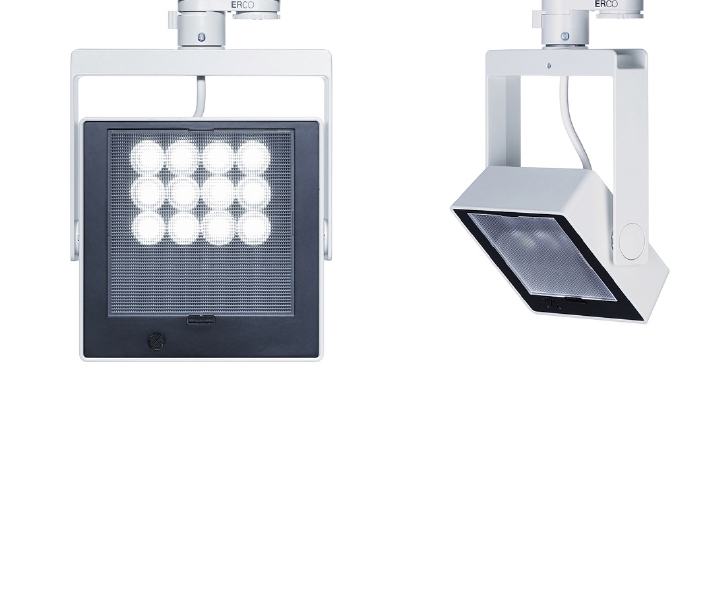

Logotec for track

The multi tool for lighting design

Compact luminaires for economic accent lighting, floodlighting and wallwashing in salesrooms

Brightness contrasts direct the view of the customer in the shop and highlight the appeal of the products on offer.
This is the domain of Logotec.
System design is on a par with energy efficiency.

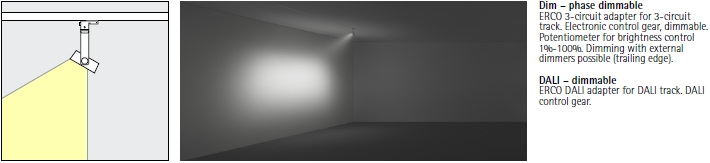

Mounted flexibly on track, this spotlight efficiently accentuates clothing, jewellery or foodstuffs.

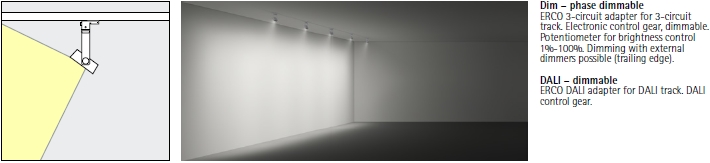

Thanks to interchangeable lenses, it even masters alternative tasks just as comfortably – the floodlighting

of large objects or the uniform illumination of walls or shelving.
As a characteristic aspect, the Logotec features a flat design thanks to highly efficient LED photometrics.
Logotec is also available as a recessed spotlight for ceilingintegrated lighting solutions.

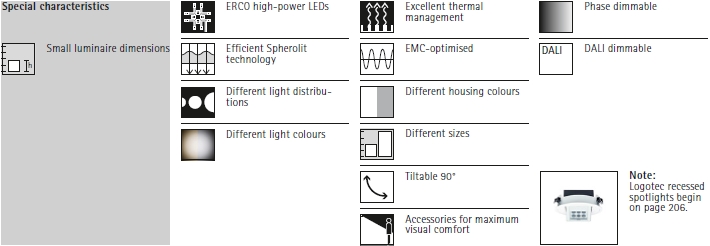

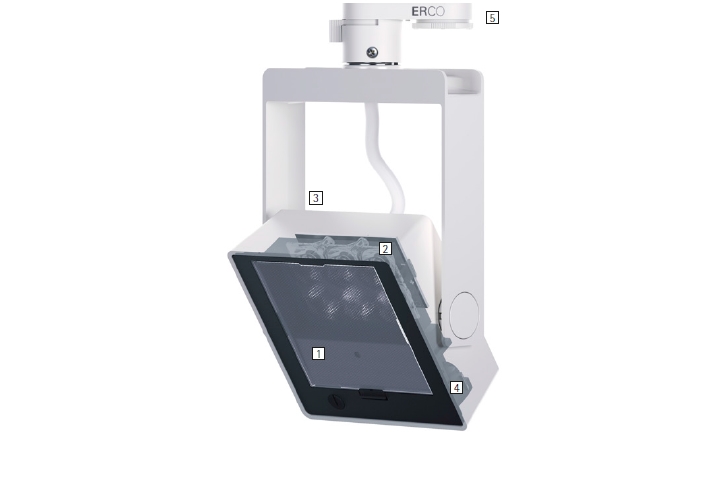

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

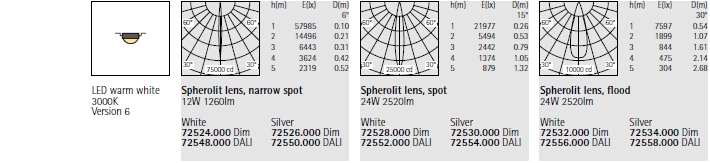

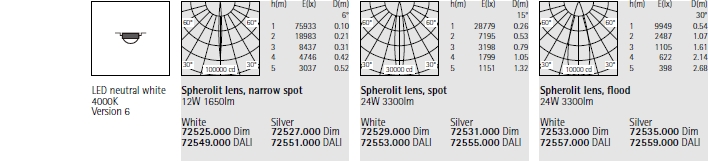

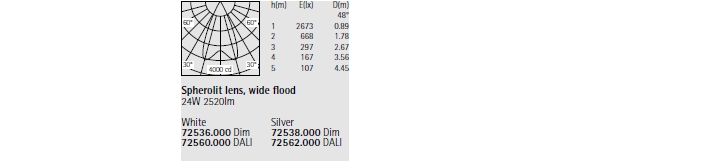

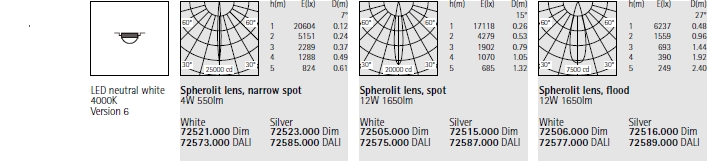

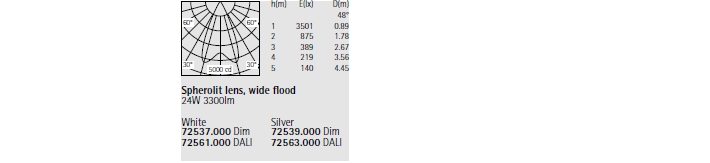

1 ERCO Spherolit lens

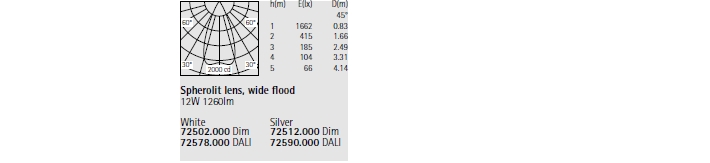

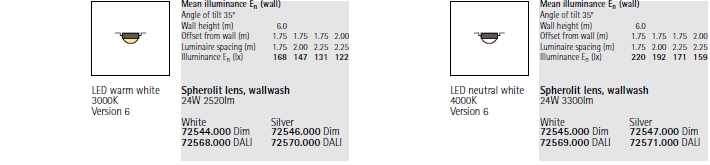

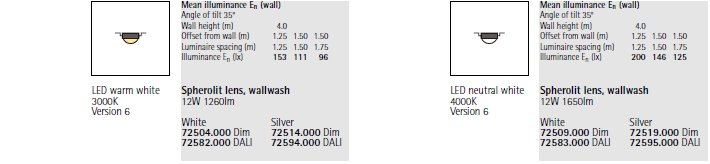

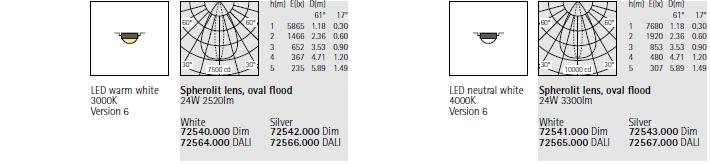

– Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash

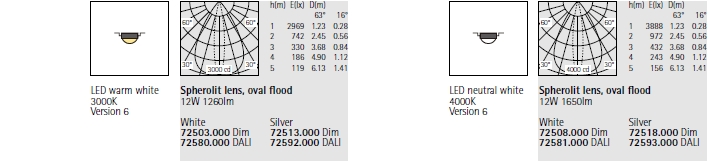

– Oval flood adjustable through 90°

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white, neutral white or varychrome RGBW
– Collimating lens made of optical polymer

3 Housing and bracket
– White (RAL9002) or silver
– Cast aluminium, powder-coated
– 0°-90° tilt
– Bracket on adapter rotatable through 360°
– Internal wiring
– Front cover: polymer, black

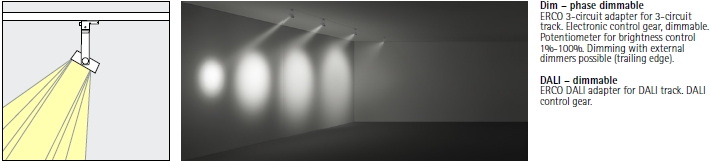

4 Control gear
– Phase dimmable or DALI dimmable
– Phase dimmable version:
Dimming with external dimmers
possible (trailing edge) and potentiometer
for brightness control
1%–100% on the luminaire

5 ERCO 3-circuit adapter or ERCO DALI adapter
