Optec for track

The all-round talent

Optec – the spotlight for any purpose

Anything is possible with Optec.

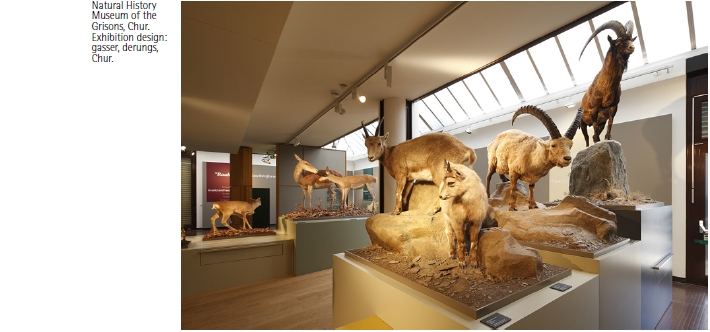

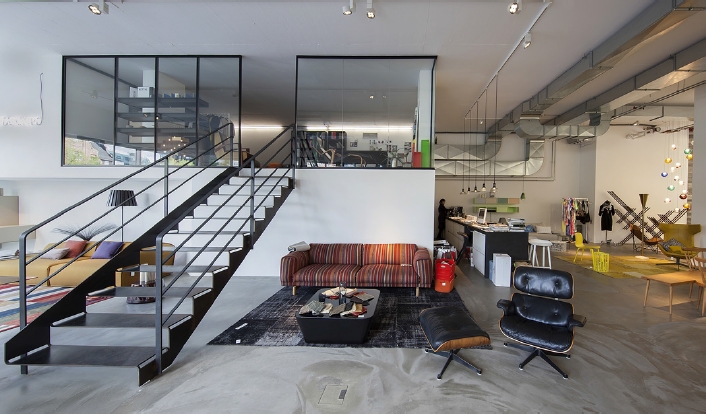

In versions with different light distributions, Optec covers the full bandwidth of lighting requirements in shops, galleries and museums

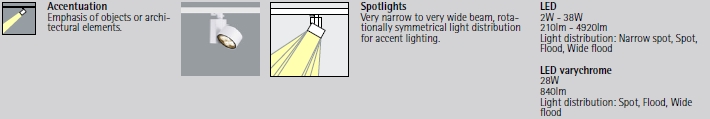

– high-contrast accent lighting, floodlighting of exhibits, uniform illumination of walls, or sharpedged beams for striking effects.
With innovative photometrics, Optec combines efficiency with visual comfort.
To ensure excellent heat management

and flawless performance, ERCO has separated the light head and control gear, whilst, at the same time, the combination of cuboid and cylinder creates the visual impression of less volume and a classic design.

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

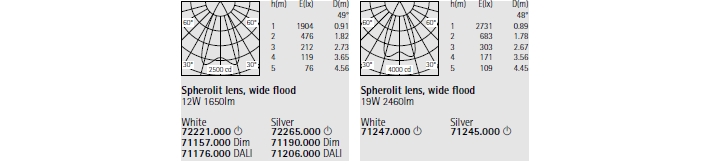

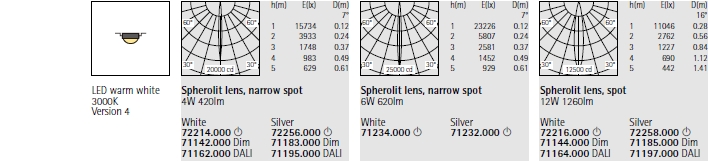

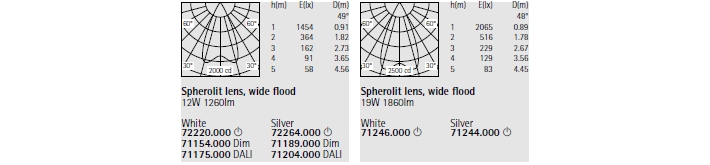

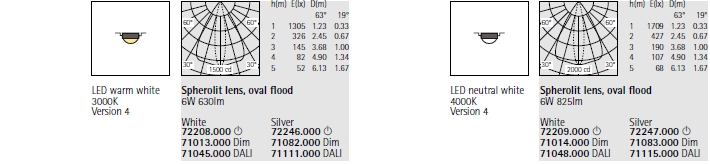

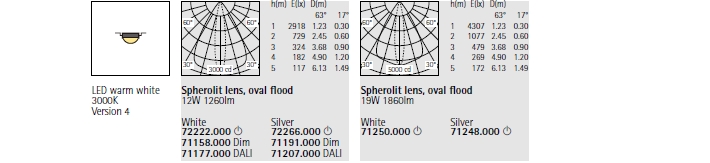

1 ERCO Spherolit lens– Light distributions: narrow spot,

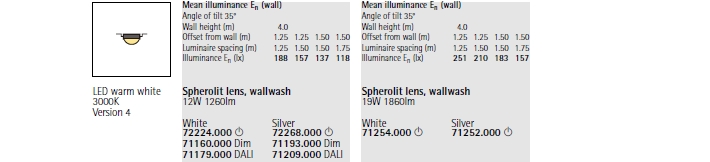

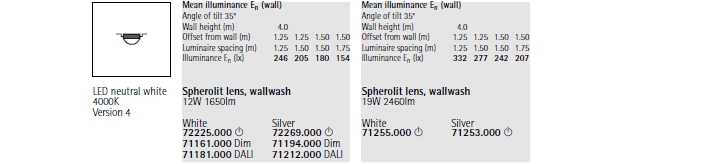

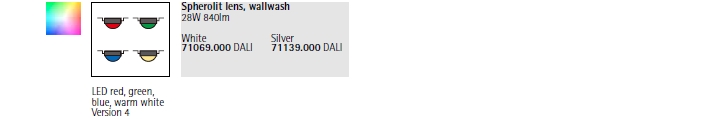

spot, flood, wide flood, oval flood or wallwash

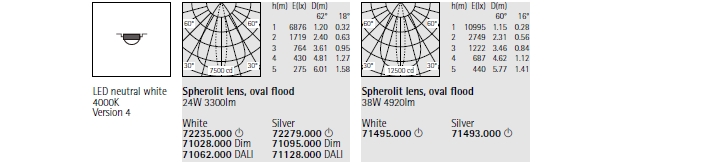

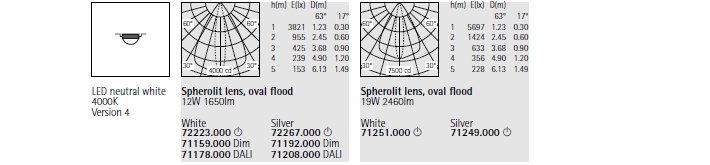

– Oval flood rotatable through 360°
or

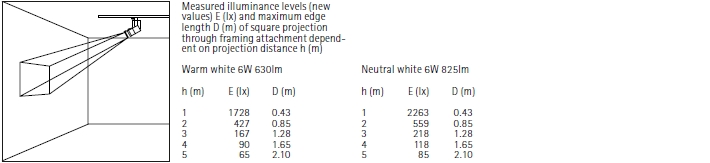

Attachment (contour spotlight)
– Rotatable through 360°

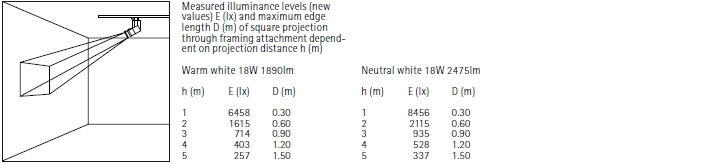

– Framing attachment
– Holder with projection lens,
continuously focusable

2 ERCO LED module– High-power LEDs on metal-core PCB

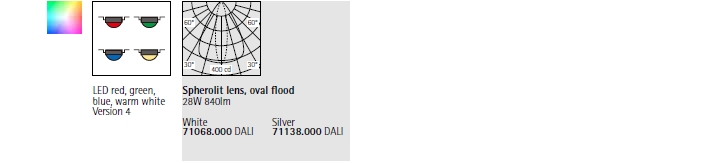

– Light colours: warm white, neutral white or varychrome RGBW
– Collimating lens made of optical polymer
– Varychrome with highly reflective colour mixer

3 Cylindrical light head– White (RAL9002) or silver
– Cast aluminium, powder-coated
– 270° tilt

4 Housing
– White (RAL9002) or silver
– Polymer
– Rotatable through 360° on adapter

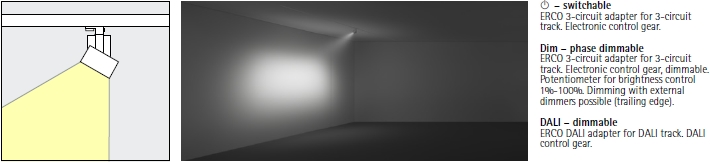

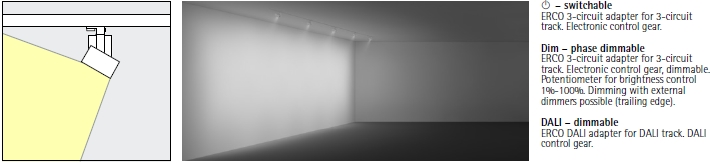

5 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version:
Dimming with external dimmers
possible (trailing edge) and potentiometer
for brightness control
1%–100% on the luminaire

6 ERCO 3-circuit adapter or ERCO DALI adapter
