Optus 시리즈는 기존의 매입형 다운라이트의 일반적인 조절 가능한 각도를 넘어서는 범위의 제품이다. 인출되었을 경우 45도, 내부로 들어갔을때 -20도 (사이즈에 따라 다름) 의 넓은 범위의 Tilting이 가능한 유연성, 더불어 전시조명에서 요구되는 기준을 넘어서는 CRI 98이상의 높은 연색성, 다양한 빔각도, 배광 조절과 눈부심 방지를 위한 악세사리 등을 통해 기존의 다운라이트 에서 구현하지 못하는 기능들을 매입형 조명으로 만들어 내었다.

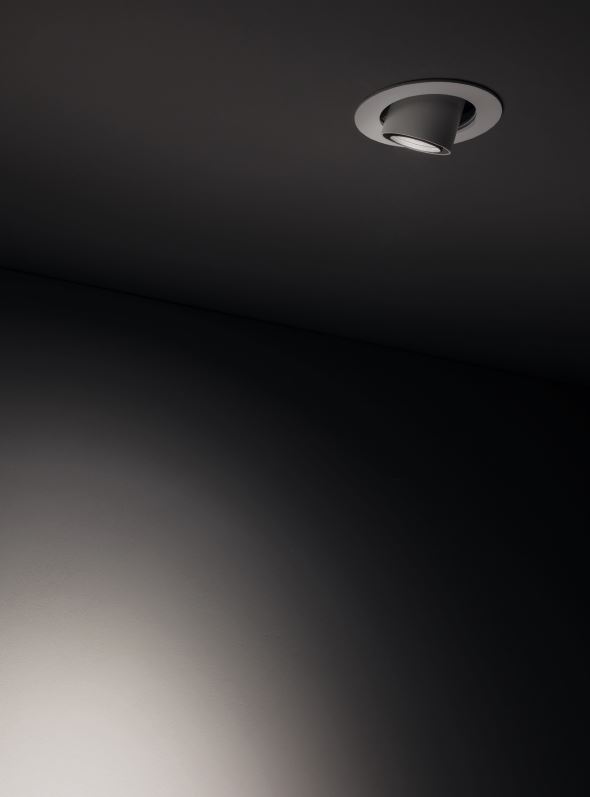

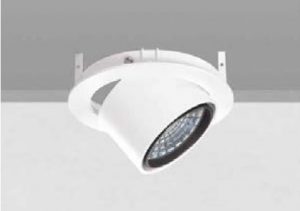

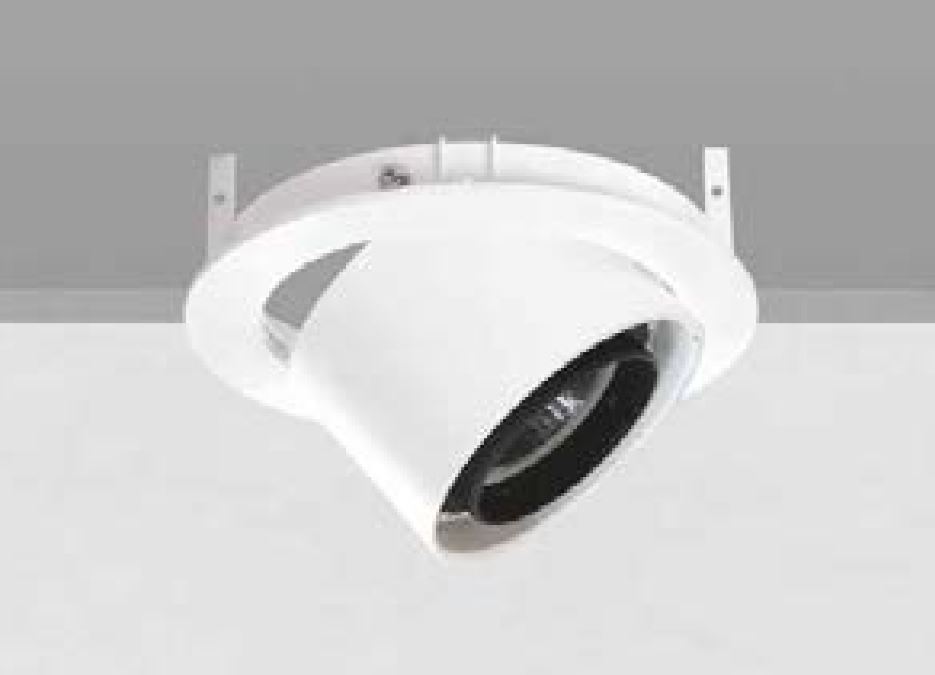

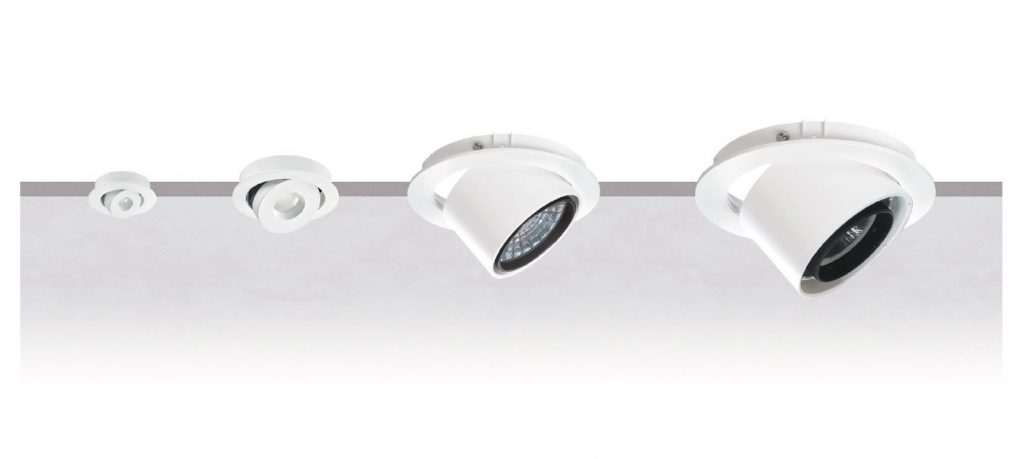

Extractable tilting version.

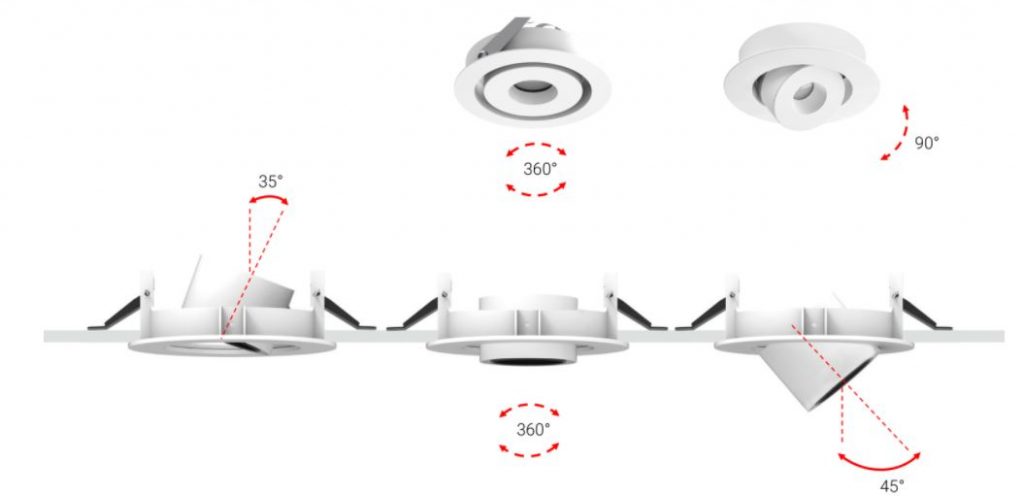

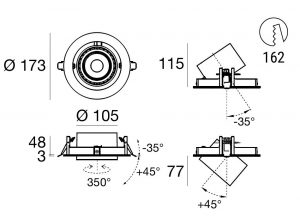

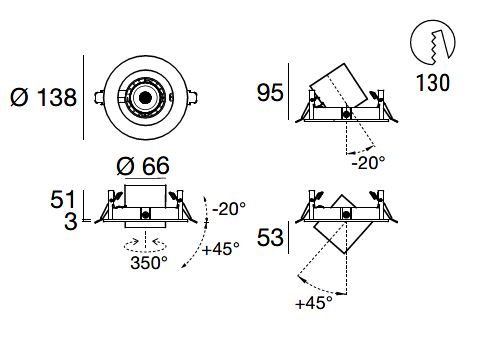

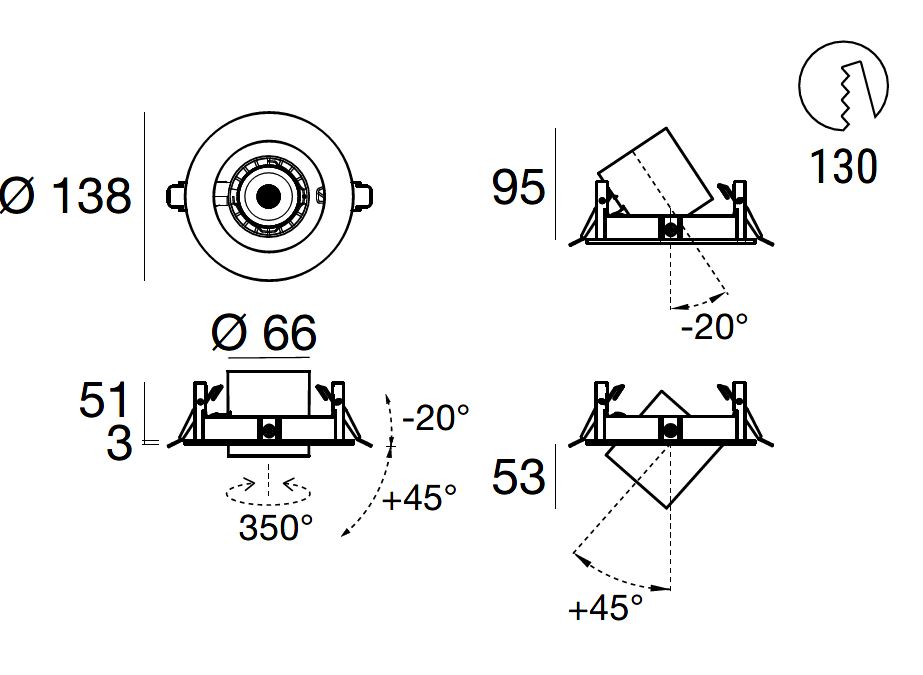

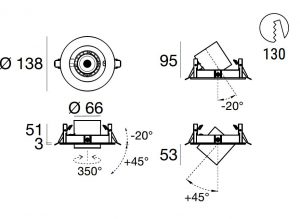

Optux EX downlights come with a 350° mobility on the horizontal axis and an incliantion on the vertical axis that allows a max 20° recess or an up to 45° extracation of the spotlight.

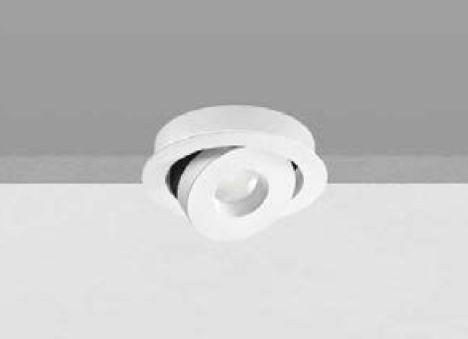

Small size

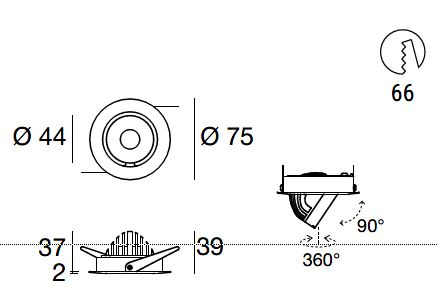

Optux EX comes with an extremely compact-size die  cast aluminium single block, just 5cm high.  This particular shape allows installation in plasterboards as well as and narrow surfaces.

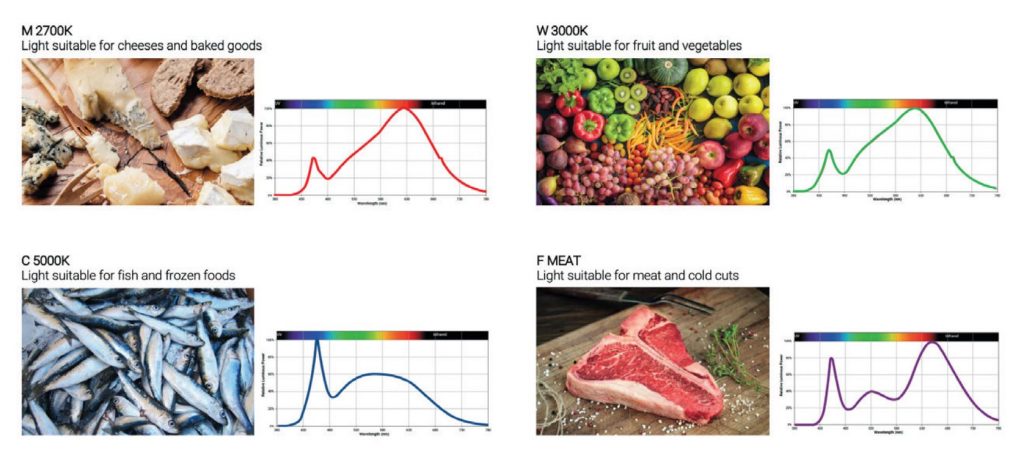

Diode varieties

The Optus_EX range of products offers the highest combination-source degree, given that it is flt for LED balance – CRI92, Specialty – CRI98 and Fidelity- CRI 98 diodes. This allows obtaining maximum versatility of use, given that Optus_EX can be installed in various environments ranging from museums to retail, depending on the specific type of source chosen.

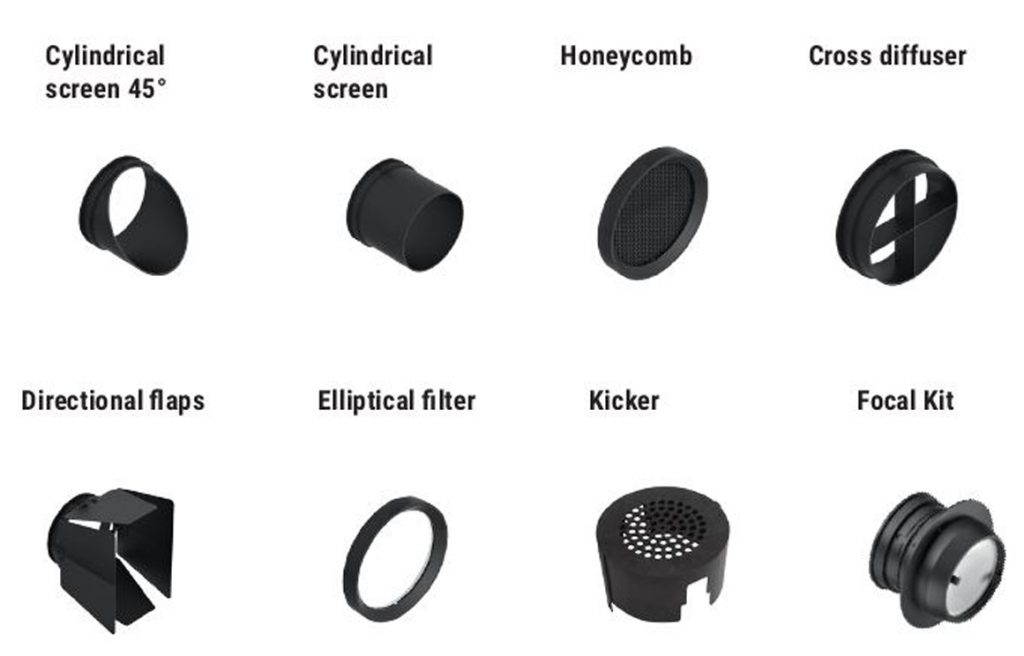

Emission control accessories

Optus_EX is compatible with a wide range of light emission control accessories, standard cylindrical screen and at 45 degrees fully or partly eliminating the secondary beam and reducing the light cone: cross-like and honeycomb diffuser, for controlling and reducing glaring more or less markedly, directional fins and elliptical filter, for shaping the light or creating ovalized projections.

Kicker accessory

Applied in the installation hole, the kicker accessory allows concealing the inner part of the dropped ceiling, otherwise visible with the spotlight extracted and oriented.



Smart lighting

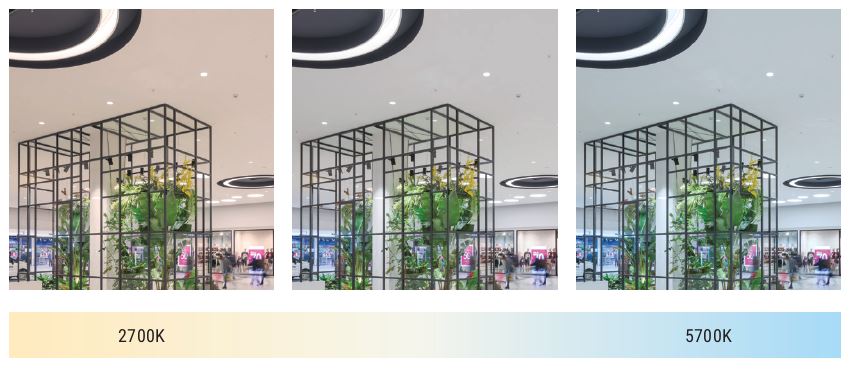

The Dynamic white modules, combined with the new, specifically developed management system, allow the mixture of whites from warm white and cold white. With a single product, it is therefore possible to reproduce all the colour temperatures from 2700K to 5700K, maintaining the same luminous flow. Recent studies on the circadian cycles have shown how the temperature variations of natural light. form dawn to dusk, influence the well-being of humans.




Guardian

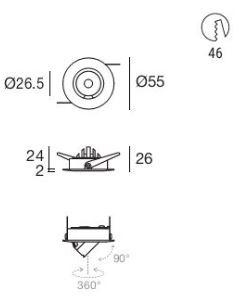

Product               Size Watts  CODE Source/
Delivered
CCT  Optic
500mA
1,5 W DC
82737 170 LM /
123 LM
M
2700K
20 (22°)
82738 181 LM /
131 LM
W
3000K
35 (32°)
  203 LM /
147 LM
N
4000K









Product               Size Watts  CODE Source/
Delivered
CCT  Optic
350mA
4 W DC
82739 389 LM /
276 LM
M
2700K
15 (15°)
82740 419 LM /
295 LM
W
3000K
30 (33°)
  449 LM /
318 LM
N
4000K
60 (61°)
      85 (10°-20°)

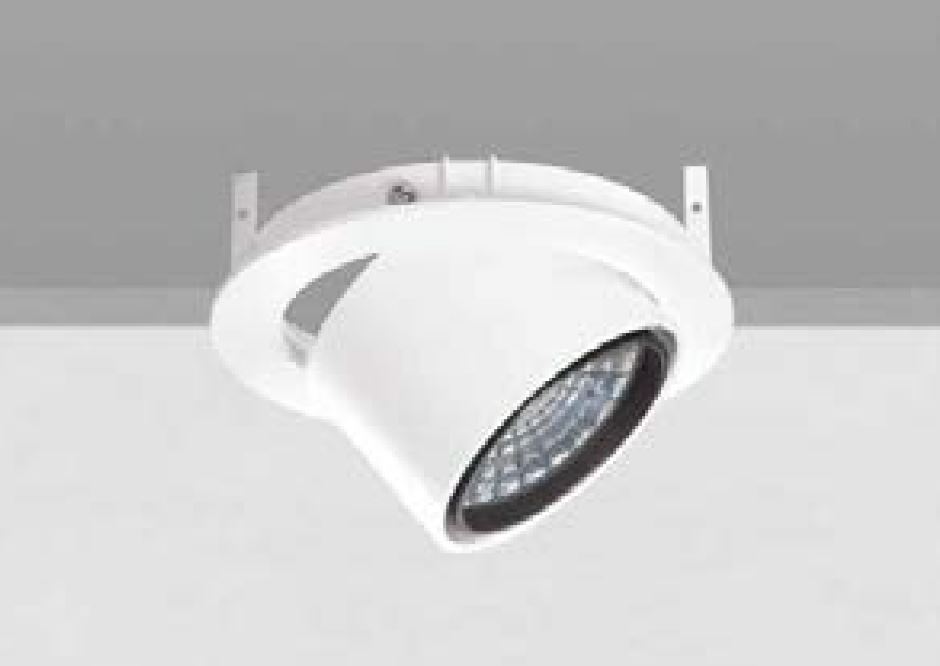

Product               Size Watts  CODE Source/
Delivered
(12W)
Source/
Delivered
(18W)
CCT  Optic
500mA
18W DC
81665 1719 LM /
1238 LM
2356 LM /
1696 LM
M
2700K
15 (22°)
81666     W
3000K
30 (37°)
      N
4000K
60 (63°)






Product               Size Watts  CODE Source/
Delivered
(12W)
Source/
Delivered
(18W)
CCT  Optic
500mA
18W DC
81663 1768 LM /
1274 LM
2423 LM /
1745 LM
M
2700K
15 (22°)
81664 1810 LM /
1303 LM
2480 LM /
1785 LM
W
3000K
30 (37°)
  1924 LM /
1385 LM
2637 LM /
1898 LM
N
4000K
60 (63°)






Product               Size Watts  CODE Source/
Delivered
(12W)
Source/
Delivered
(18W)
CCT  Optic
500mA
18 W DC
81661 1964 LM /
1420 LM
2692 LM /
1945 LM
M
2700K
15 (22°)
81662 2056 LM /
1487 LM
2818 LM /
2037 LM
W
3000K
30 (37°)
  2138 LM /
1548 LM
2930 LM /
2121 LM
N
4000K
60 (63°)






Product               Size Watts  CODE CCT Optic
700mA
8 W DC
84159 2700K /
5700 K
Dynamic white
15 (22°)
84160   30 (37°)
    60 (63°)

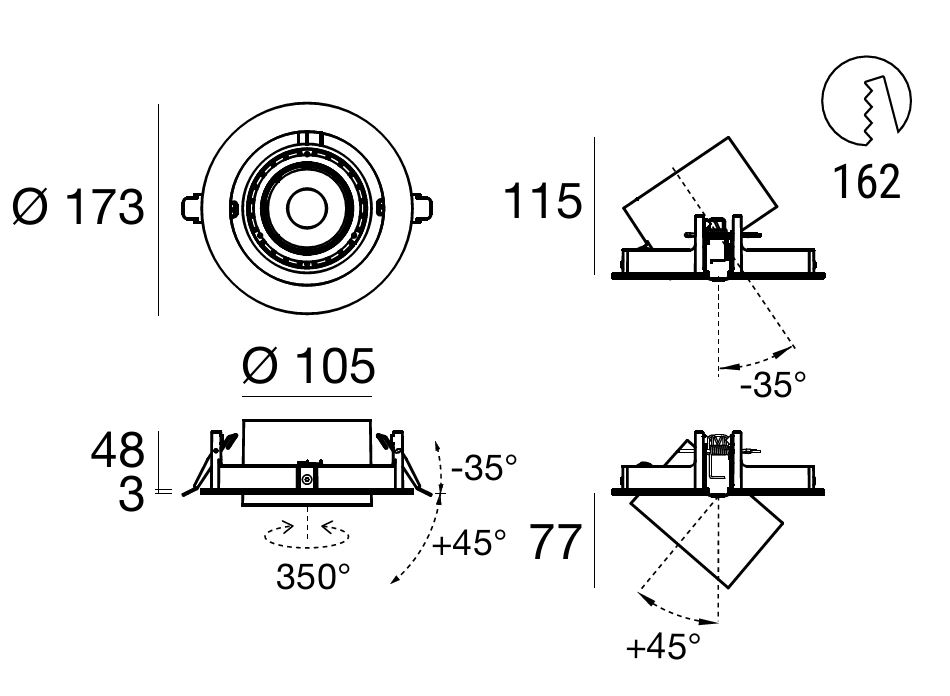

Product               Size Watts  CODE Source/
Delivered
(25W)
Source/
Delivered
(35W)
CCT  Optic
950mA
35 W DC
81671 3242 LM /
2589 LM
4196 LM /
3350 LM
W
3000K
15 (17°)
81672       30 (26°)
        60 (51°)








Product               Size Watts  CODE Source/
Delivered
(25W)
Source/
Delivered
(35W)
CCT  Optic
950mA
35 W DC
81669 3446 LM /
2754 LM
4460 LM /
3563 LM
M
2700K
15 (17°)
81670 3412 LM/
2727 LM
4416 LM /
3528 LM
W
3000K
30 (26°)
  3627 LM/
2899 LM
4695 LM /
3751 LM
N
4000K
60 (51°)








Product               Size Watts  CODE Source/
Delivered
(25W)
Source/
Delivered
(35W)
CCT  Optic
950mA
35 W DC
81667 3829 LM /
3054 LM
4956 LM /
3951 LM
M
2700K
15 (17°)
81668 3877 LM/
3100 LM
5019 LM /
4011 LM
W
3000K
30 (26°)
  4030 LM/
3224 LM
5216 LM /
4172 LM
N
4000K
60 (51°)
  3909 LM/
3131 LM
5059 LM/
4051 LM
 C
5000K

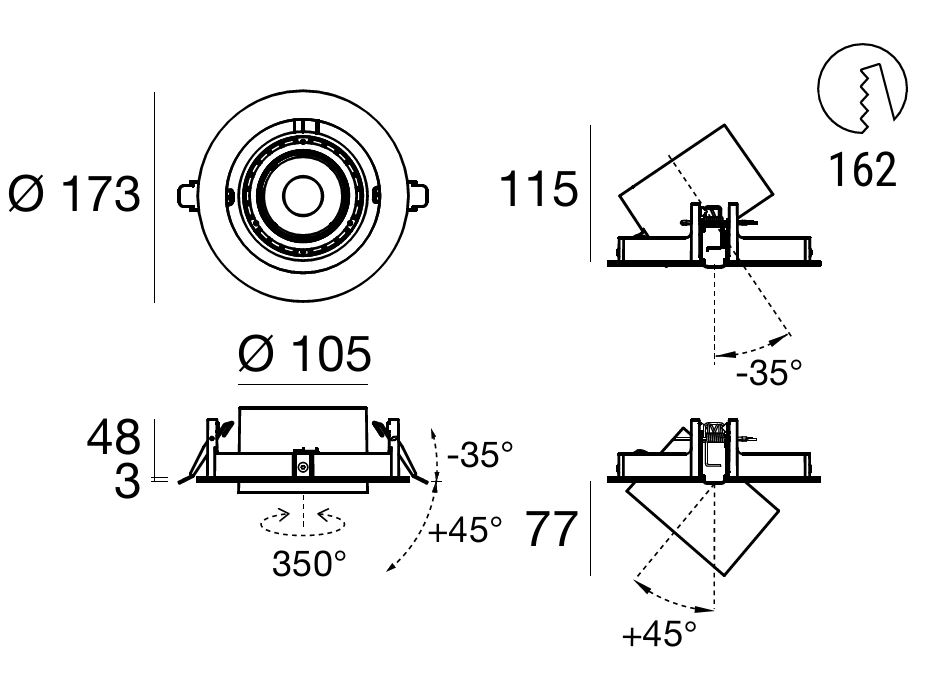

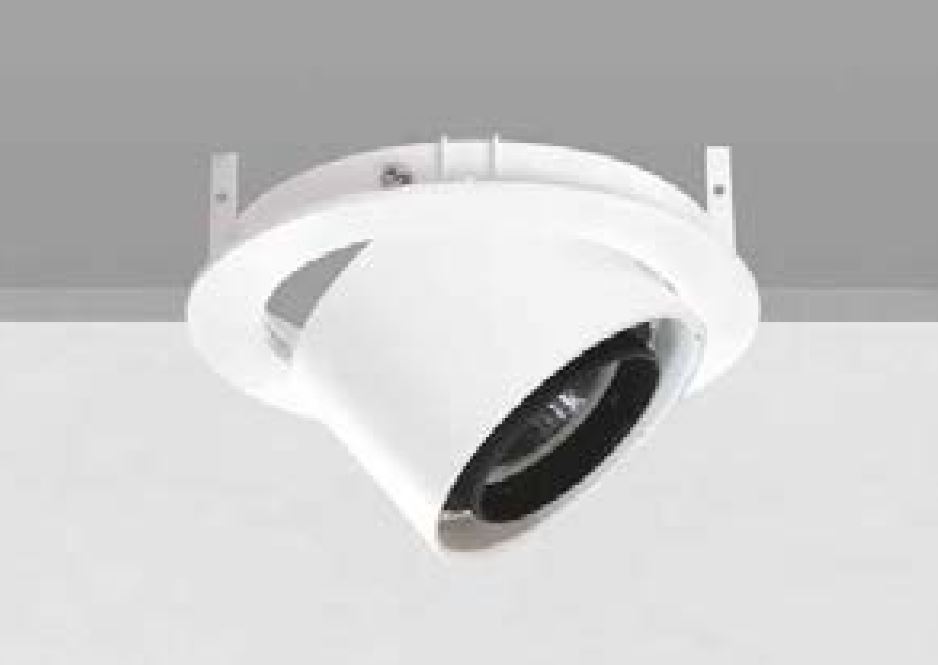

Product               Size Watts  CODE CCT Optic
700mA
15 W DC
84161 2700K /
5700 K
Dynamic white
15 (17°)
84162   30 (26°)

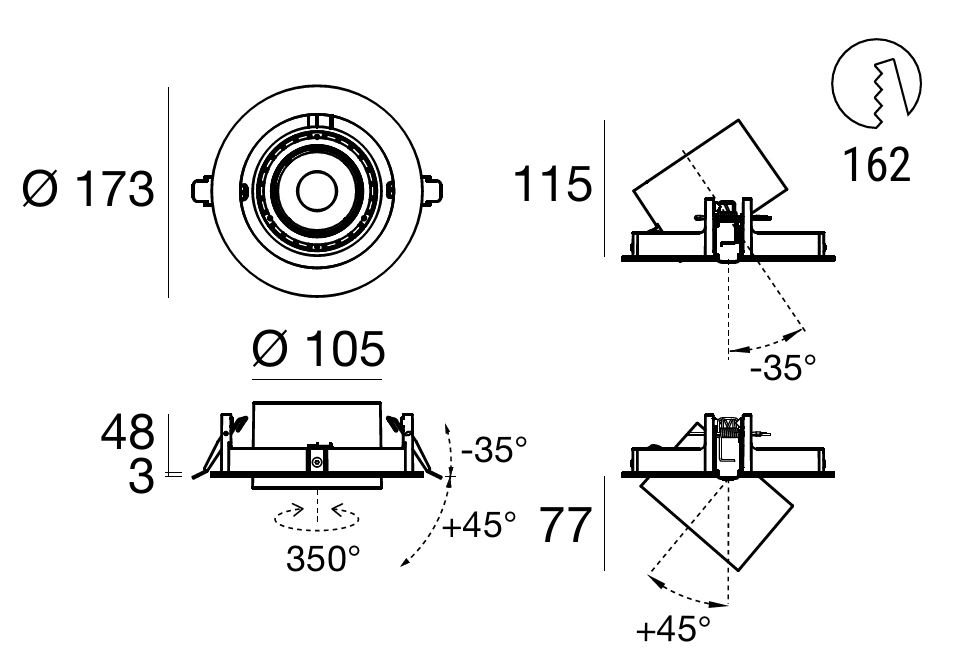

Product   Size Watts  CODE CCT Optic
700mA
25 W DC
84163 2700K /
5700 K
Dynamic white
15 (17°)
84164   30 (26°)
