Pollux for track

For magic moments

Pollux, the compact spotlight
for versatile use

The versatility of Pollux, underwritten by its compact format, displays particular strengths in museums, shops, the catering industry or residential environments. As a special highlight, Pollux also includes contour spotlights with LED.
Using the framing attachment, their sharpedged beam can be adjusted to suit the format of images and objects in the room or on the wall.
This creates wonderful effects that are particularly valuable in

museums and galleries. Its understated design means that Pollux is also excellent in combination with other spotlight series or as a gradual addition to existing lighting systems.

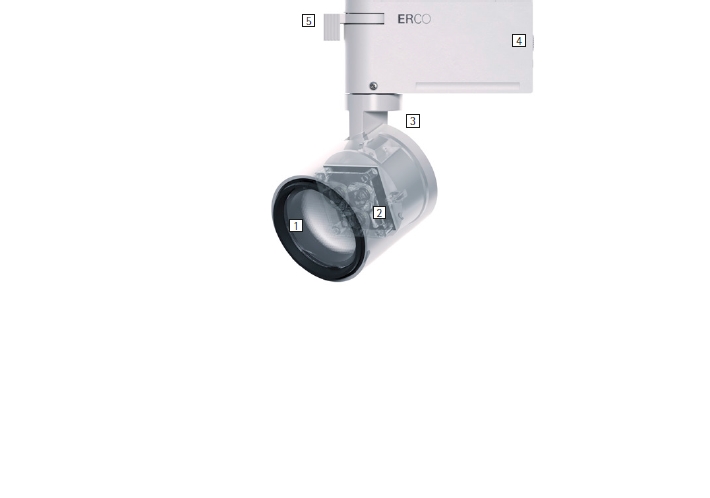

Structure and characteristics
The features described here are typical of products in this range. Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website. The direct links for quick access always take the same form:

1 ERCO Spherolit lens

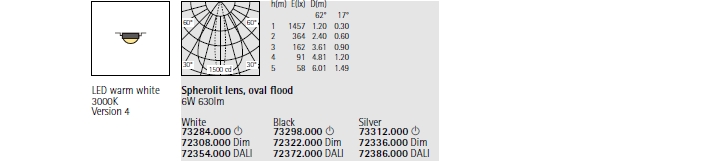

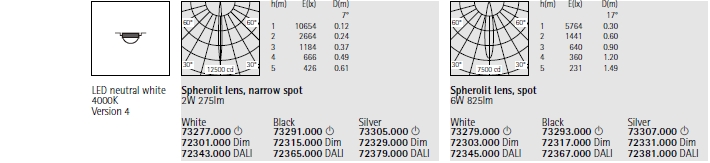

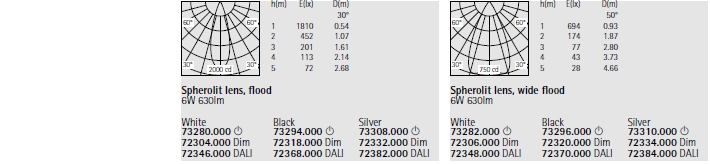

– Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
– Oval flood 360°

or

Attachment (contour spotlight)
– Rotatable through 360°

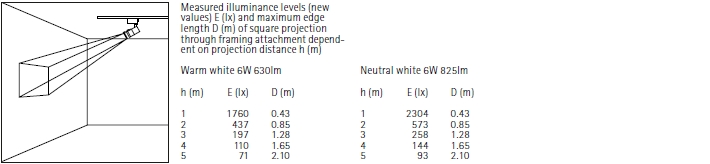

– Framing attachment: polymer, black
– Fresnel lens
– Holder with projection lens,
continuously focusable

2 ERCO LED module – High-power LEDs on metal-core PCB
– Light colours: warm white or neutral white
– Collimating lens made of optical polymer

3 Housing and bracket
– White (RAL9002), black or silver
– Cast aluminium, powder-coated
– 0°-90° tilt
– Bracket on adapter rotatable through 360°
– Internal wiring

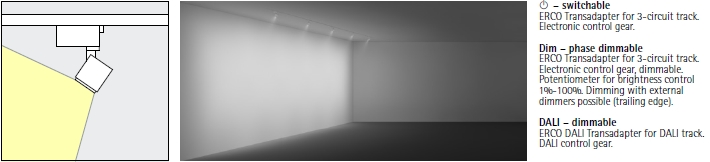

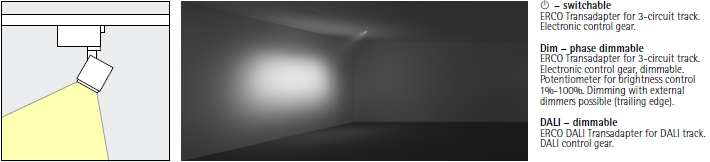

4 Control gear – Phase dimmable or DALI dimmable
– Phase dimmable version: Dimming with external dimmers possible (trailing edge) and potentiometer for brightness control 1%–100% on the luminaire

5 ERCO transadapter or
ERCO DALI transadapter
