Quintessence round Recessed luminaires

The system solution for excellent visual comfort

Large luminaire spacing, high uniformity and excellent visual comfort

Quintessence recessed luminaires, available in round and square versions, set new standards in their category: The high-performance range, consisting of downlights, lens wallwashers and directional luminaires, meets superior standards of visual comfort and efficiency whilst delivering optimal light quality for a multitude of visual tasks.
The new optical systems of the downlights and lens wallwashers produce superb uniformity

whilst ensuring excellent glare control.

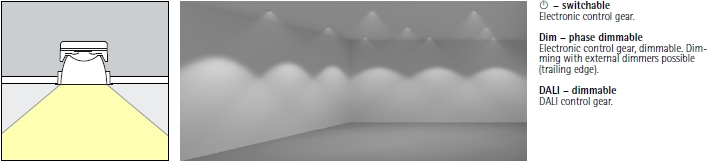

With an emission angle of 90° and a 40° cut-off, Quintessence downlights meet the challenges of illuminating large areas masterfully – offering uniform and efficient ambient lighting with large luminaire spacing and high cylindrical illuminances.
ERCO control gear guarantees consistent dimming characteristics of these lighting tools and can be dimmed down to 1%. The shallow recess

depth allows Quintessence units to be used flexibly in different spatial situations.

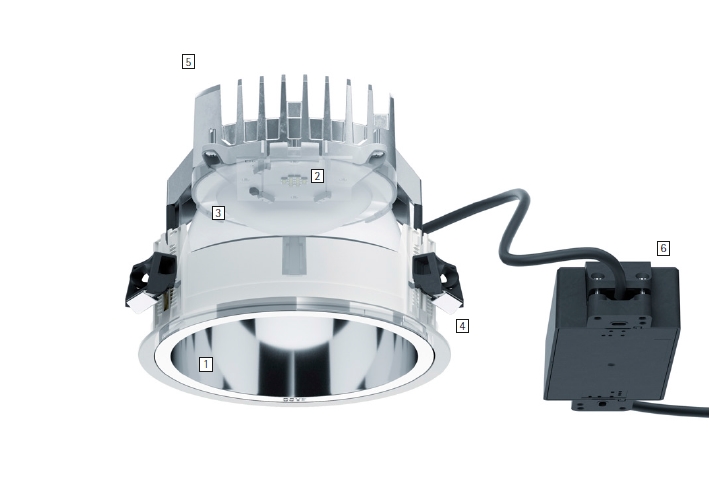

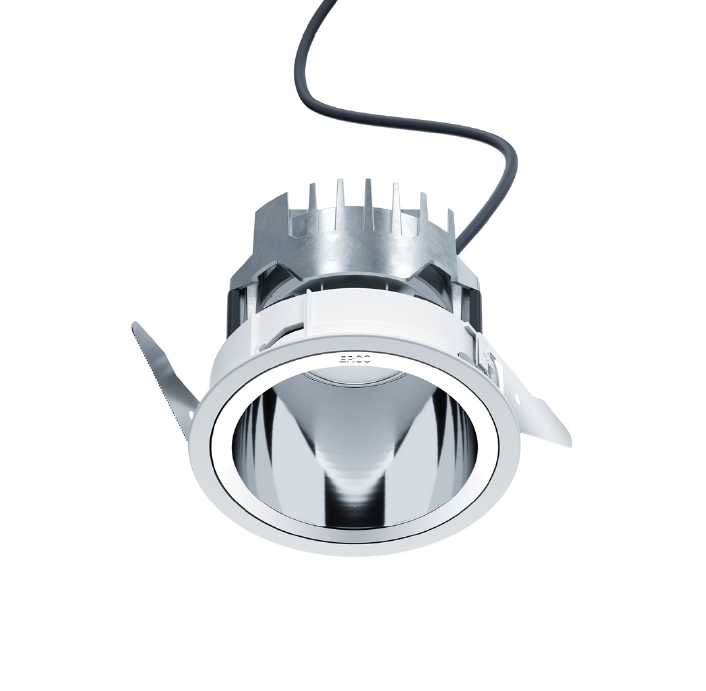

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

1 ERCO darklight reflector
– Downlight: cut-off angle 40°
– Polymer, aluminium vaporised,
mirror-finish
or
Wallwasher reflector
– Cut-off angle 80°
– Polymer, aluminium vaporised, mirror-finish

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white or neutral white
– Directional luminaire with collimating lens made of optical polymer

3 Diffuser or lens
– Made of optical polymer

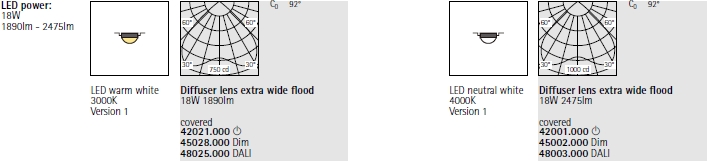

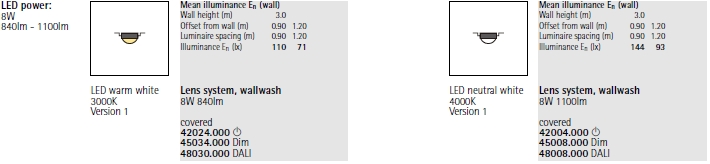

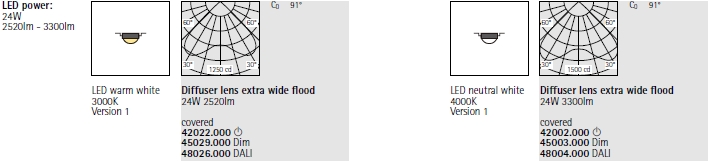

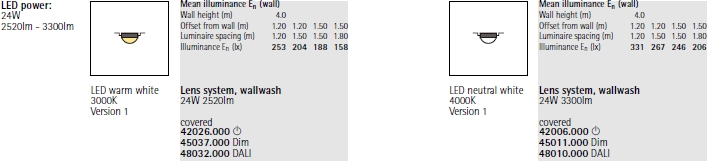

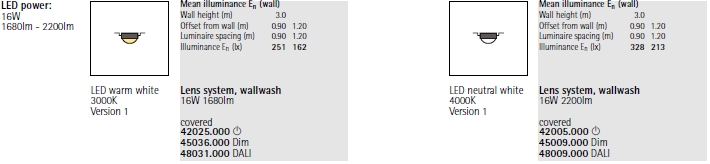

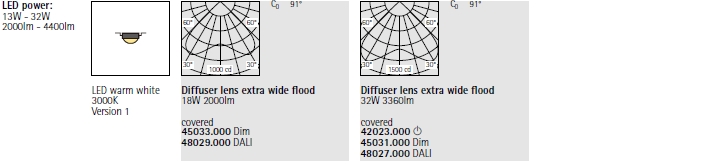

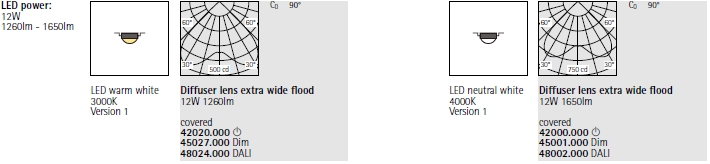

– Diffuser lens, extra wide flood or lens system, wallwash

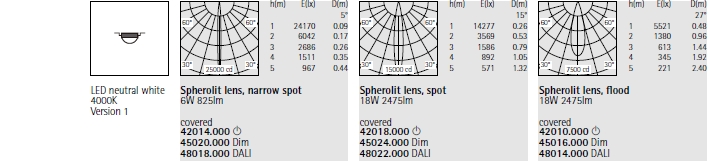

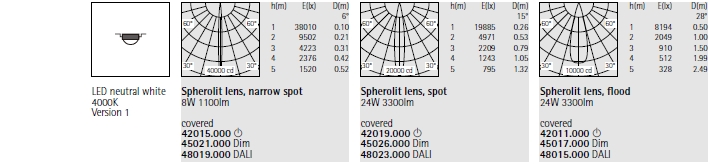

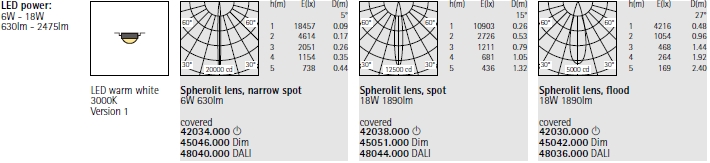

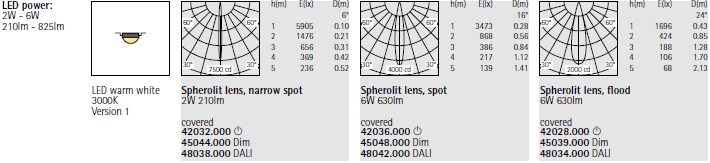

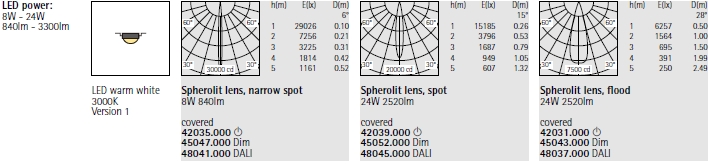

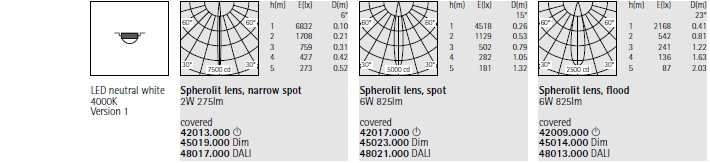

– Directional luminaire with Spherolit lens narrow spot, spot or flood

4 Mounting ring
– Covered mounting detail
– Fixing for ceiling thicknesses of 1–25mm (sizes 3–4) or 1–30mm(sizes 5–7)
– Polymer, white

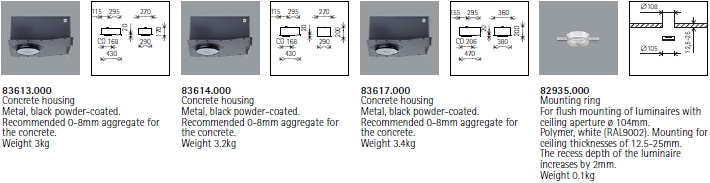

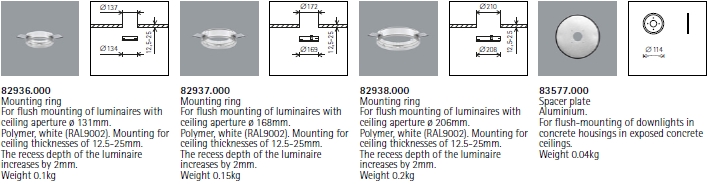

– For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5 Housing
– Cast aluminium, designed as heat sink
– 360° rotation
– Fixing ring: polymer, black
– Fixing of the beam direction

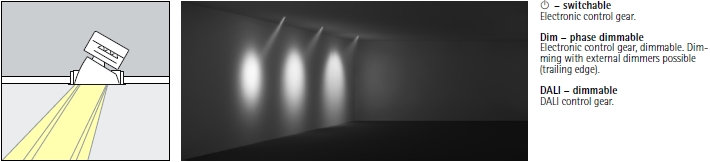

– Directional luminaire: 0°-30° tilt. Lockable angles of tilt and rotation

6 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version: dimming with external dimmers possible (trailing edge)
