Quintessence round Recessed spotlights, recessed floodlights

Elegant accentuation and floodlighting

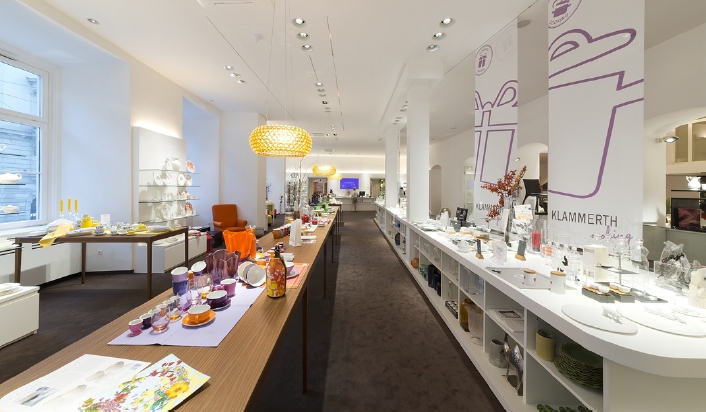

Round recessed spotlights and recessed floodlights for prestigious areas, exhibitions and salesrooms

The Quintessence round recessed spotlights help you expertly accentuate individual areas or objects.
The recessed floodlights, meanwhile, direct the attention of the observer onto your shelves and product tables.
The luminaires integrate elegantly with the room architecture, their large swivel range enables you to reach even far corners of the room.
The Quintessence system design facilitates a flexible lighting

concept as a unified whole.
Combine spotlights and floodlights with each other or with the Quintessence downlights.
Select the appropriate mounting details and lamps.
Whatever your choice, the result is always a highly efficient lighting system meeting the highest standards of light quality.

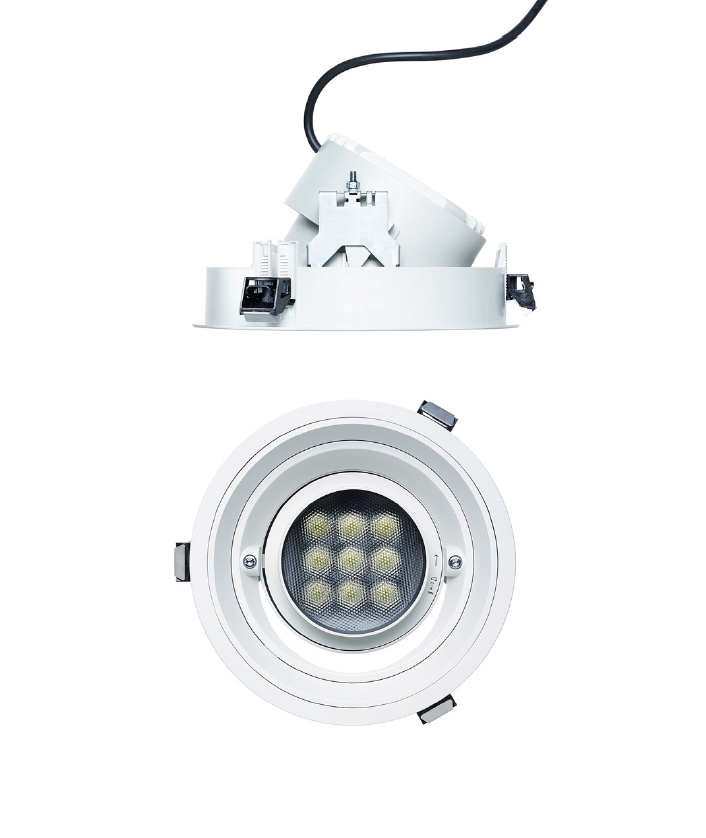

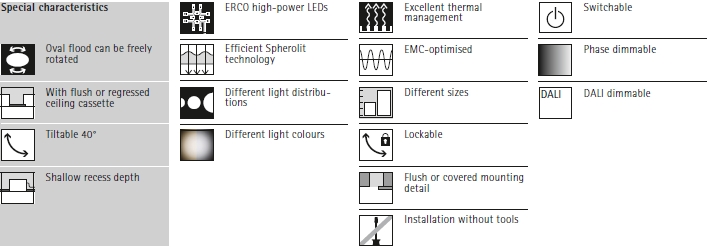

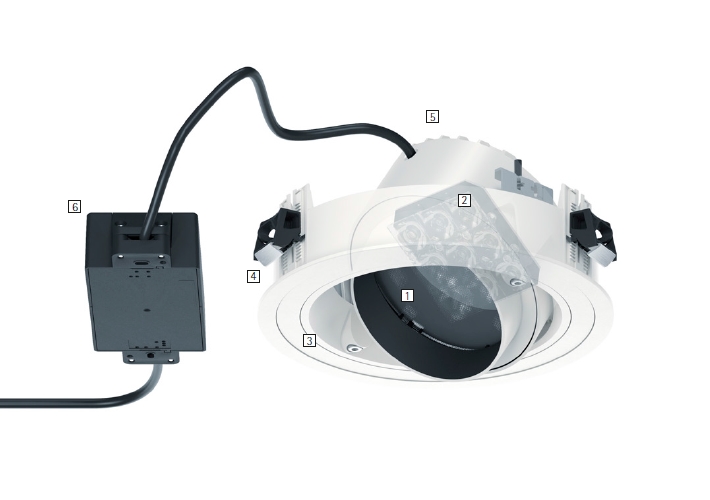

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

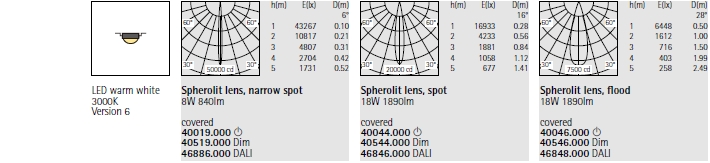

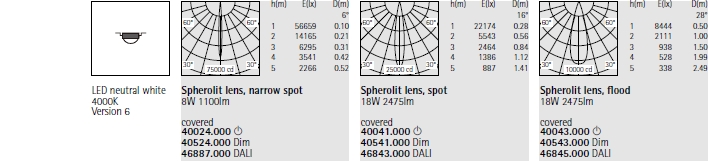

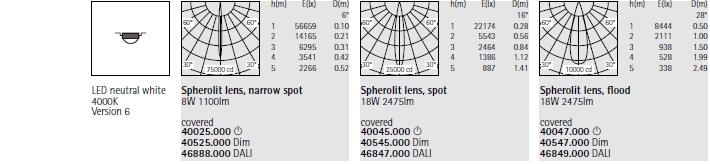

1 ERCO Spherolit lens

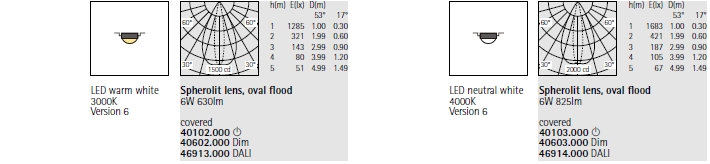

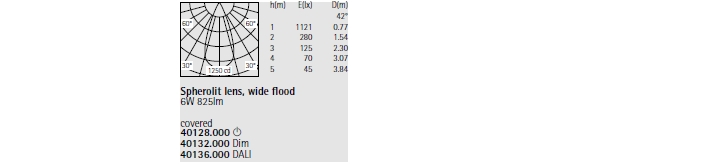

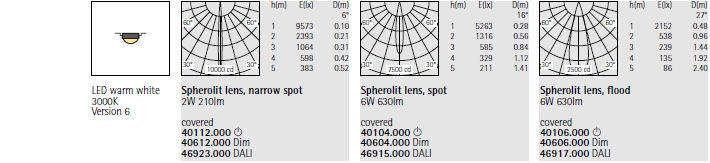

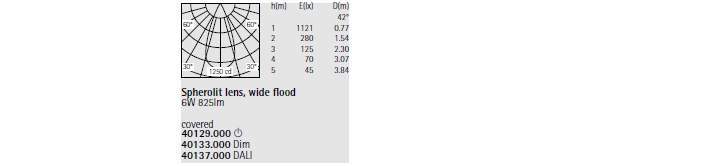

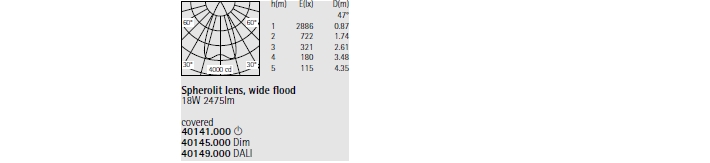

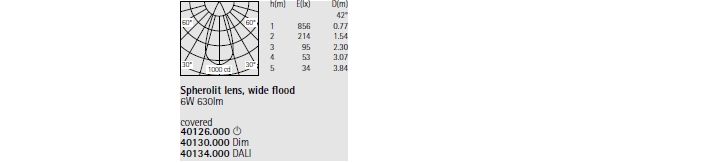

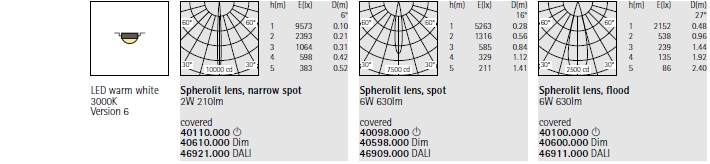

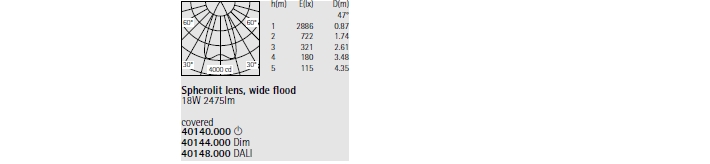

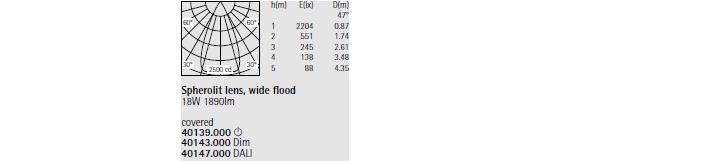

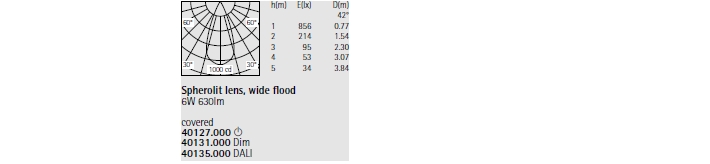

– Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash

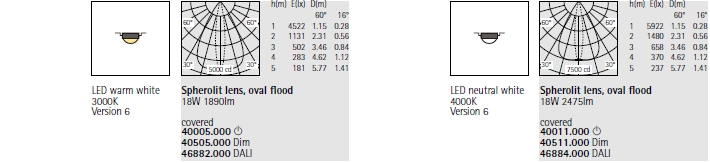

– Oval flood rotatable through 360°

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white or neutral white
– Collimating lens made of optical polymer

3 Flush or regressed cassette
– Polymer, white

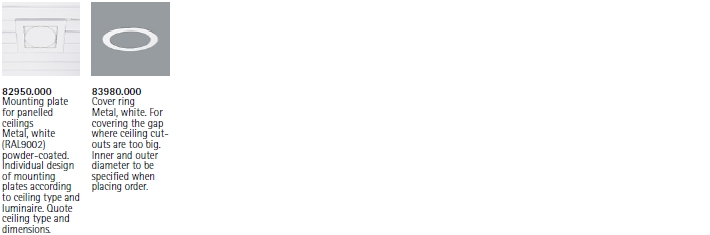

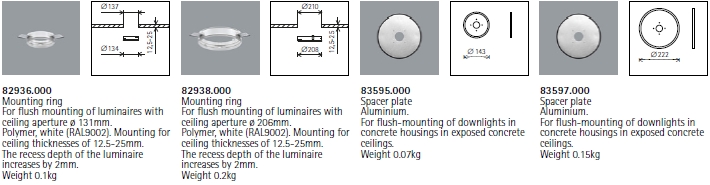

4 Mounting ring
– Covered mounting detail
– Fixing for ceiling thicknesses of 1-25mm (size 4) or 1-30mm (size 7)
– Polymer, white
– For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

5 Housing
– Cast aluminium
– 0°-40° tilt, 360° rotation
– Lockable angles of tilt and rotation
– Anti-glare ring: polymer or cast aluminium, internal black lacquered, external white

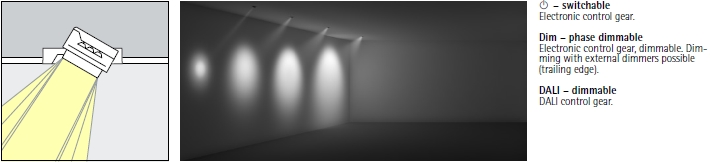

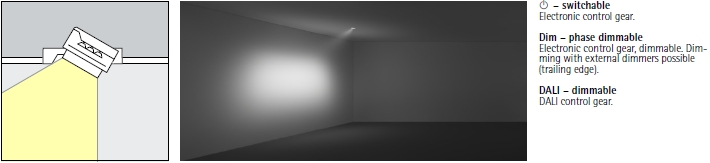

6 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version: dimming with external dimmers possible (trailing edge)
