Starpoint Recessed spotlights, recessed floodlights

Filigree powerhouse for accent lighting and washlighting

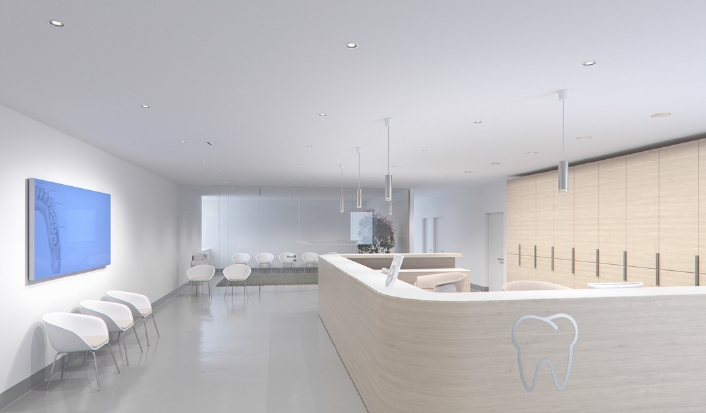

Recessed spotlights for salesrooms, hotels, restaurants and homes

The discreet ceiling aperture of the Starpoint recessed spotlight conceals a master of accentuation and washlighting. Designed in a compact format, the luminaires are available with five different light distributions.
As a versatile system, it allows the illumination of restaurant interiors, hotel rooms and homes, creating a wide variety of eye-catching features.
With covered or flush mounting detail,

the luminaire caters to different room situations.

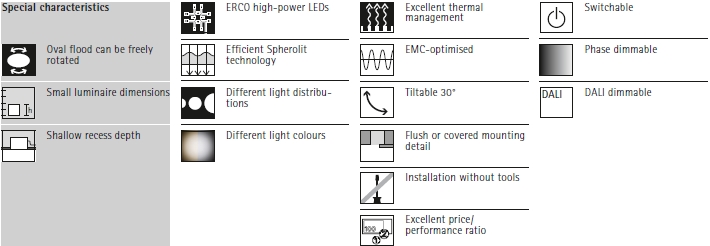

Structure and characteristics
The features described here are typical of products in this range.
Special versions may offer additional or varying features.
A comprehensive description of the features of individual products can be found on our website.
The direct links for quick access always take the same form:
www.erco.com

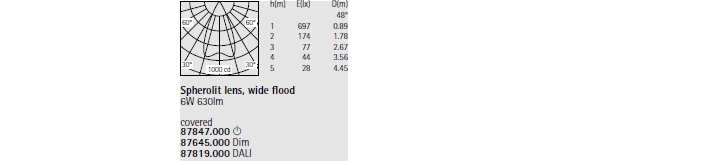

1 ERCO Spherolit lens

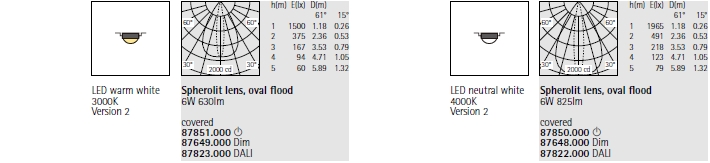

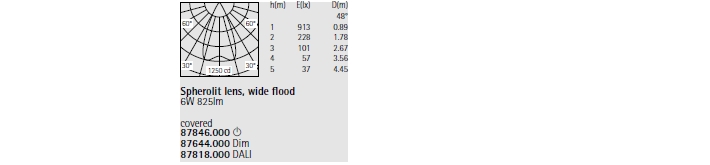

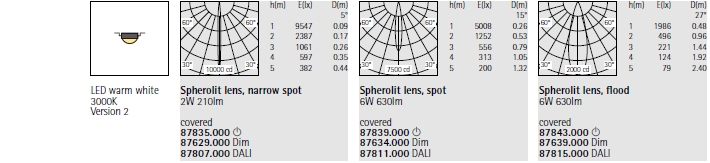

– Light distributions: narrow spot, spot, flood, wide flood, oval flood or wallwash
– Oval flood rotatable through 360°

2 ERCO LED module
– High-power LEDs on metal-core PCB
– Light colours: warm white or neutral white
– Collimating lens made of optical polymer

3 Mounting ring
– Covered mounting detail
– Fixing for ceiling thicknesses of 1-25mm (size 4) or 1-30mm (size 7)
– Polymer, white

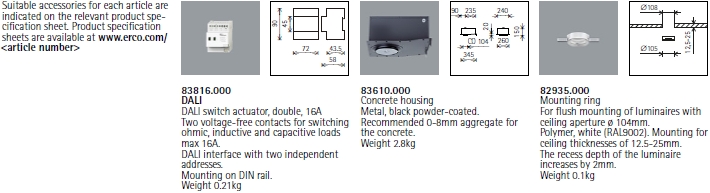

– For flush mounting: mounting ring to be ordered separately, fixing for ceiling thicknesses of 12.5–25mm

4 Luminaire
– White (RAL9002)
– Cast aluminium
– 0°-30° tilt, 360° rotation

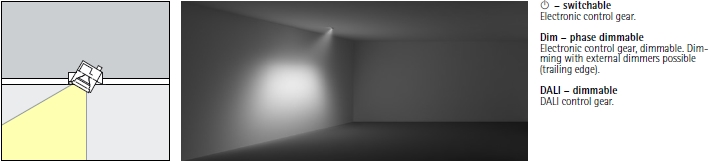

5 Control gear
– Switchable, phase dimmable or DALI dimmable
– Phase dimmable version: dimming with external dimmers possible (trailing edge)
