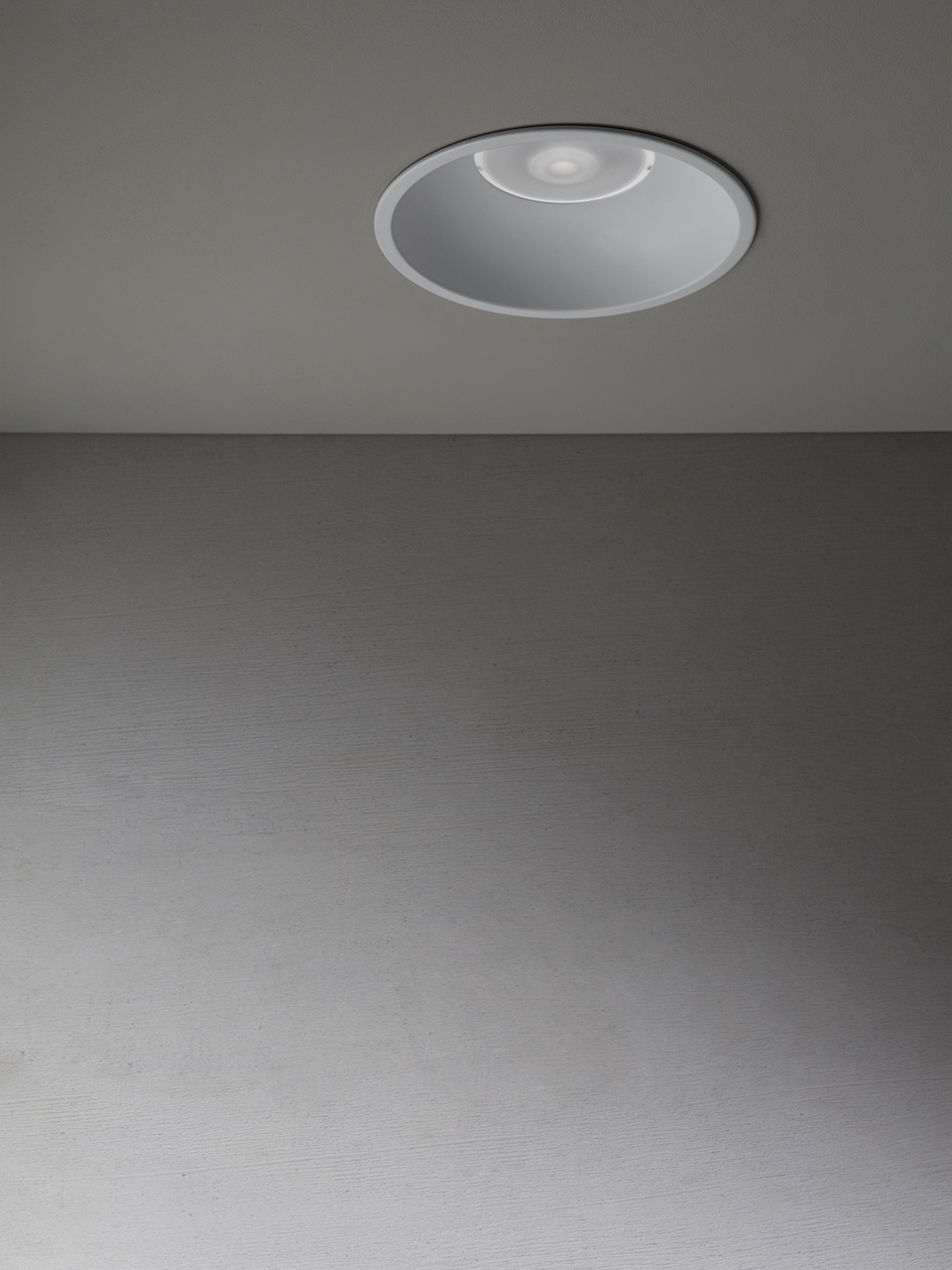

Woofer_R는 고효율의 밝기를 제공하도록 설계된 알루미늄 바디의 원형 실내 다운라이트입니다. 이전 버전과 비교했을 때, 12.5W의 Woofer_R은 밝기가 크게 개선되어 2235루멘을 제공합니다(이전 버전은 13W로 1385루멘). 3가지 색온도(CCT)와 4가지 광학 옵션을 제공하는 Woofer_R은 다양한 실내 조명 요구에 맞게 최적의 조명 설정을 할 수 있도록 도와줍니다.
Woofer_R is a round indoor downlight with an aluminum body, designed to provide high luminous efficiency. Compared to the previous version, the Woofer_R with 12.5W offers significantly improved brightness, reaching 2235 lumens (compared to 1385 lumens of the previous version with 13W). With 3 color temperatures (CCT) and 4 optical options, the Woofer_R allows optimal customization of lighting to adapt to various indoor lighting needs.
woofer_R
| Product | Size | Watts | CRI 90 | FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|---|
|
|
|
220mA
8W DC |

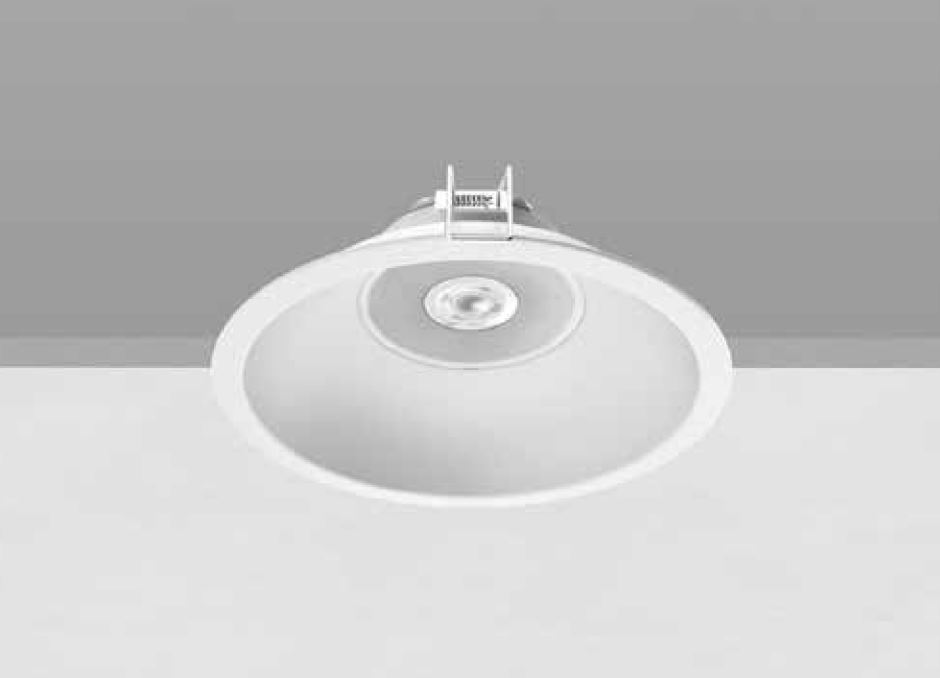

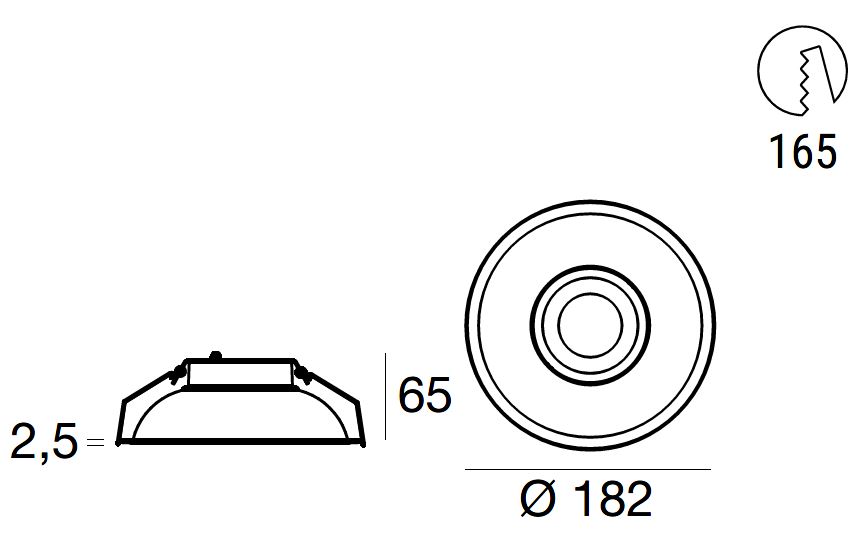

C00405 | WH |
1278 LM / 938 LM |
M 2700 |
SP (16ºUGR<16) |
| 1338 LM / 982 LM |
W 3000 |
WF (64ºUGR<16) | |||||
| 1392 LM / 1017 LM |
N 4000 |
XF (96º) | |||||
| WW (Asym Ww) |
| Product | Size | Watts | CRI 90 | FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|---|
|
|
|
350mA
12,5 W DC |

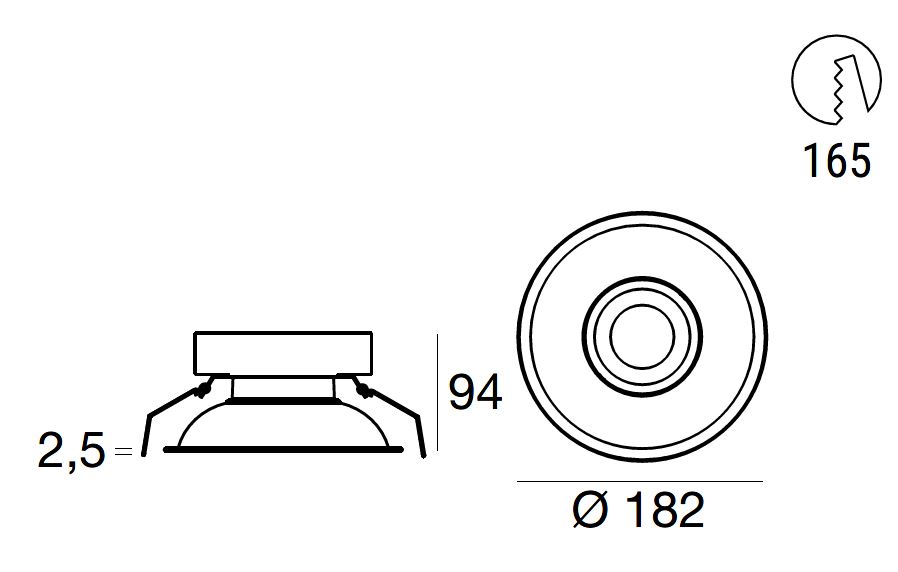

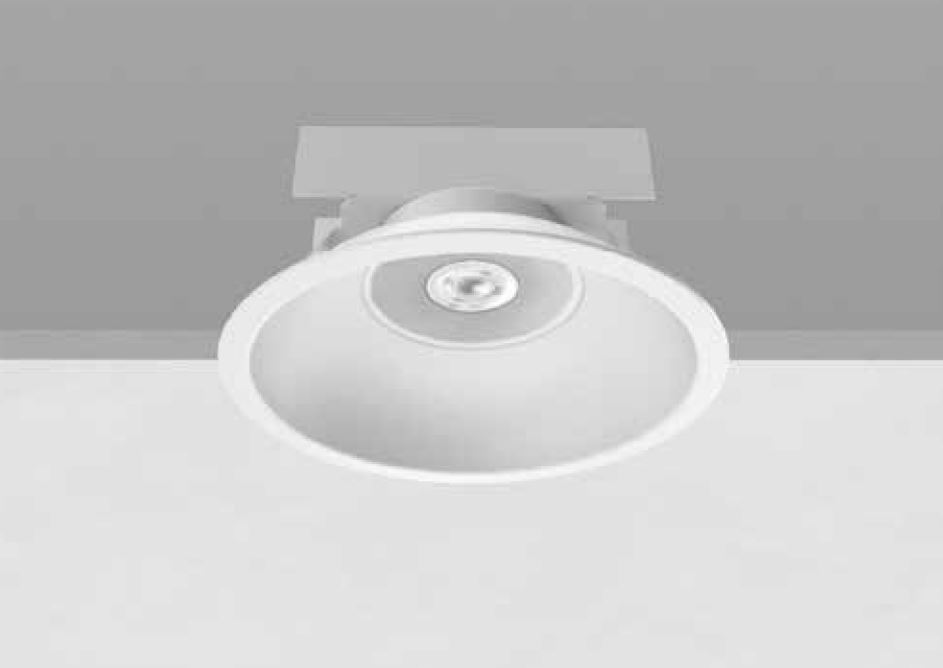

C00406 | WH |
2145 LM / 1488 LM |
M 2700 |
SP (21ºUGR<19) |
| 2235 LM / 1620 LM |
W 3000 |
WF (62ºUGR<19) | |||||
| 2266 LM / 1665 LM |
N 4000 |
XF (96º) | |||||
| WW (Asym Ww) |
| Product | Size | Watts | CRI 90 | FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|---|
|
|
|
500mA
18 W DC |

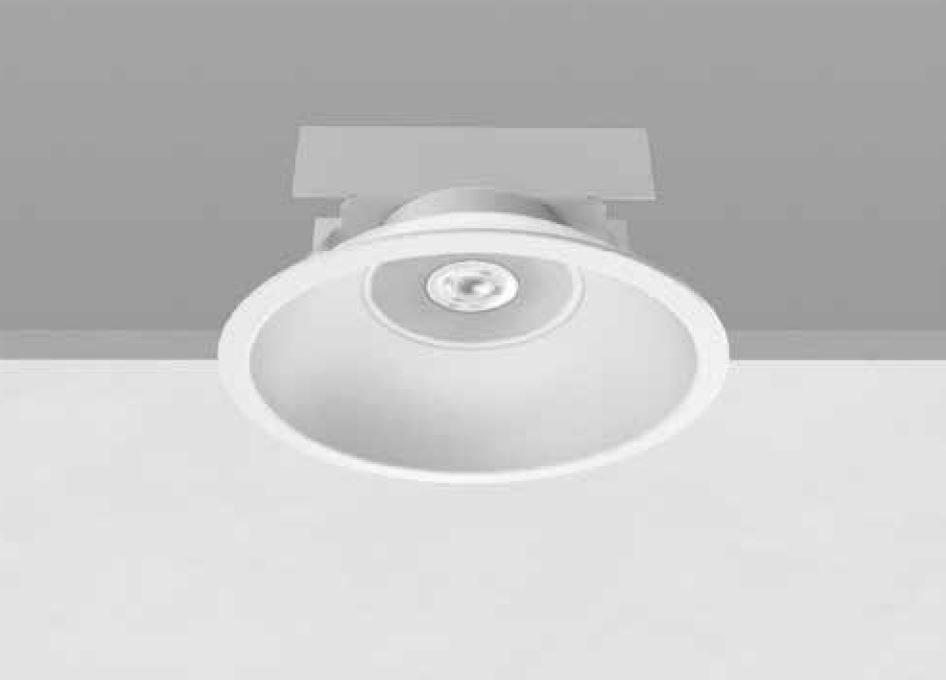

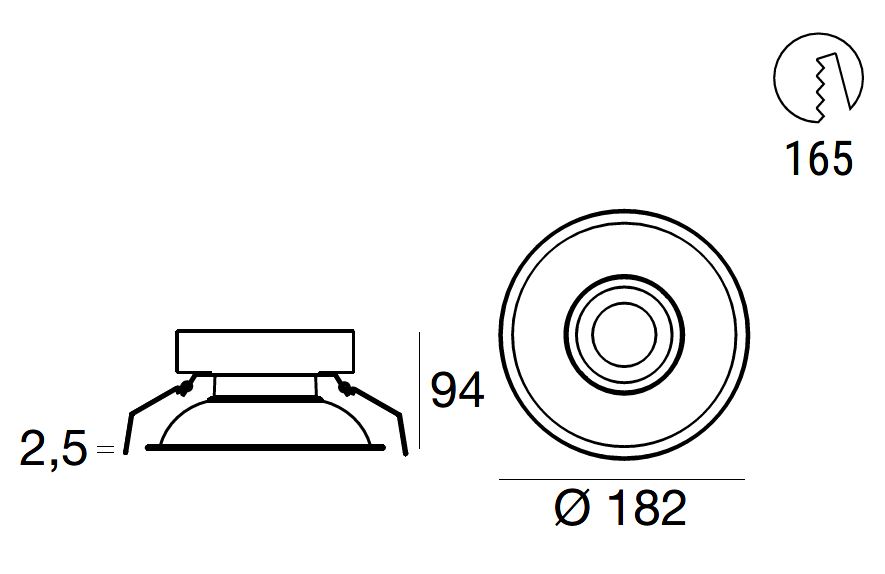

C00407 | WH |
2834 LM / 2060 LM |
M 2700 |
SP (21ºUGR<19) |
| 2869 LM / 2082 LM |
W 3000 |
WF (60ºUGR<19) | |||||
| 2982 LM / 2173 LM |
N 4000 |
XF (96º) | |||||
| WW (Asym Ww) |
| Product | Size | Watts | CRI 90 | FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|---|
|
|
|
500mA
18 W DC |

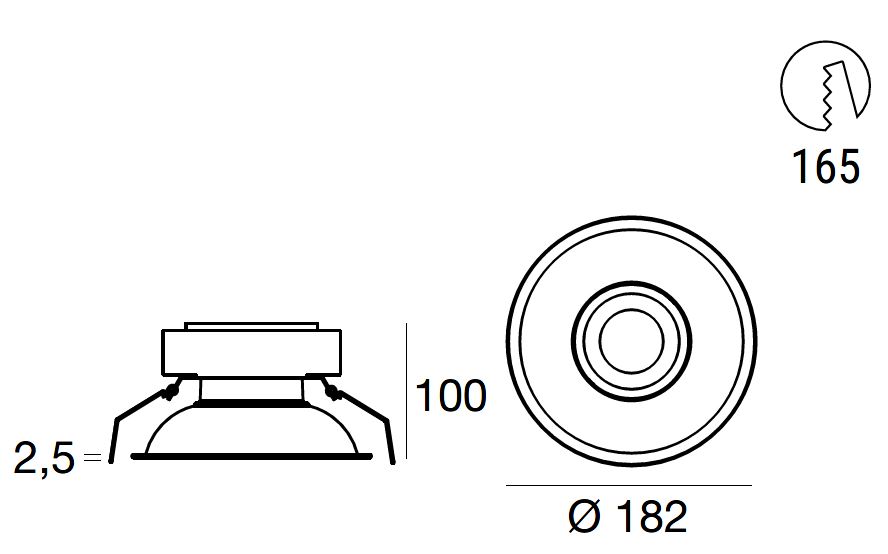

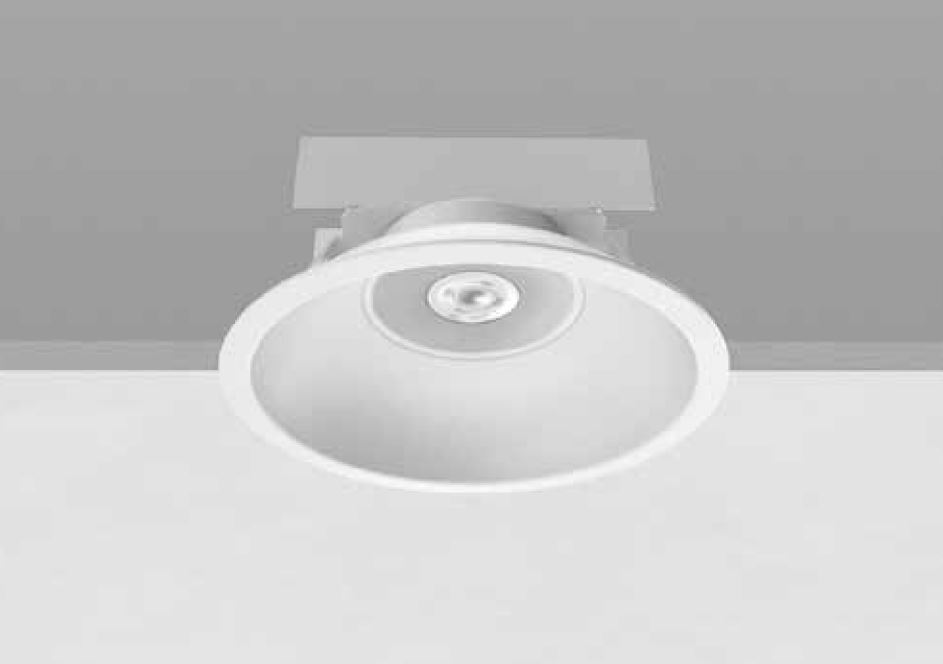

C00408 | WH |
2834 LM / 2060 LM |
M 2700 |
SP (21ºUGR<19) |
| 2869 LM / 2082 LM |
W 3000 |
WF (60ºUGR<19) | |||||
| 2982 LM / 2173 LM |
N 4000 |
XF (96º) | |||||
| WW (Asym Ww) |
| Product | Size | Watts | CRI 90 | FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|---|
|
|
|
700mA
25 W DC |

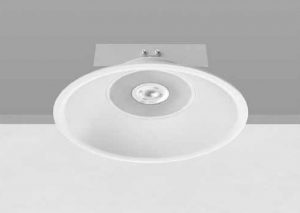

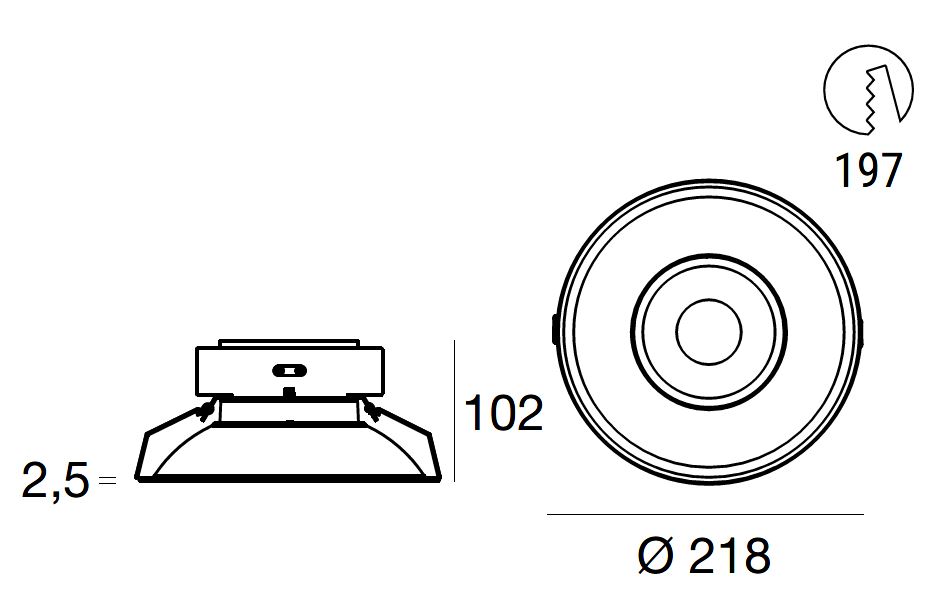

C00409 | WH |
3846 LM / 2757 LM |
M 2700 |
SP (27ºUGR<19) |
| 4007 LM / 2869 LM |
W 3000 |
WF (57ºUGR<19) | |||||
| 4225 LM / 3029 LM |
N 4000 |
XF (99º) | |||||
| WW (Asym Ww) |
woofer_R ECL
| Product | Size | Watts (CRI90) |
FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|
|
|
|
15WDC
16,5WAC |

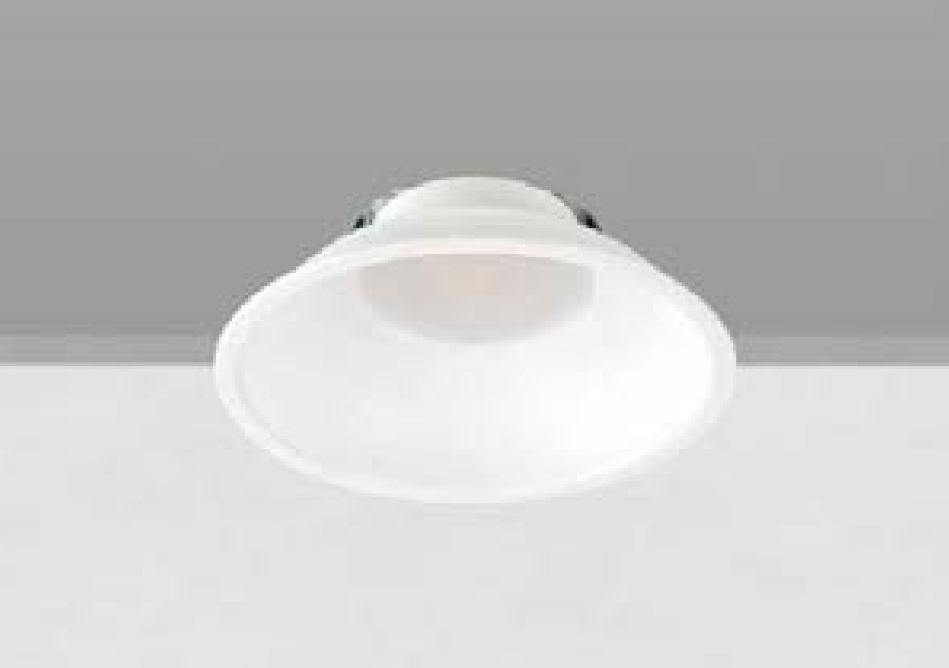

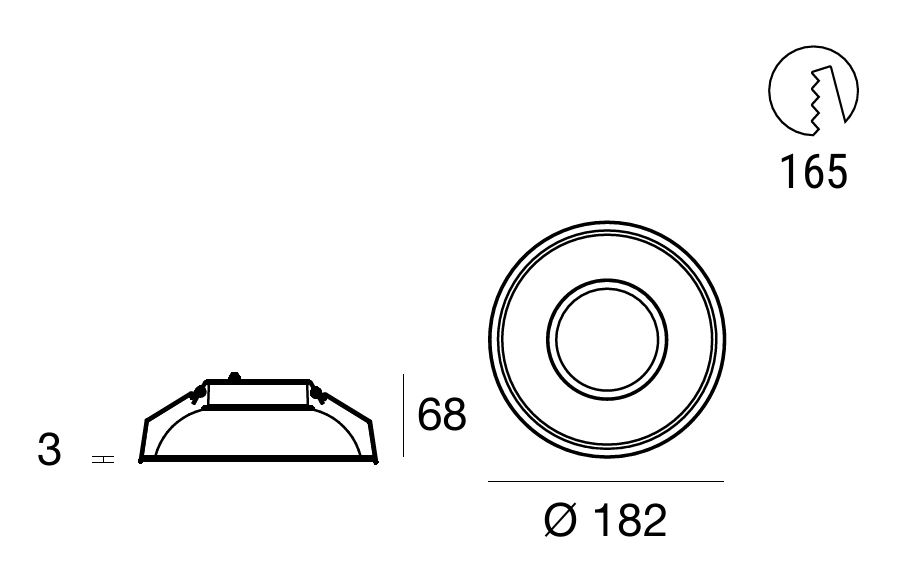

84023 |
1000 LM / 748 LM |
T 3500K |
00 (Diffused) |
| Product | Size | Watts (CRI90) |
FINISH | Source/ Delivered |
CCT | Optic |
|---|---|---|---|---|---|---|
|
|
|
24WDC
26,5WAC |

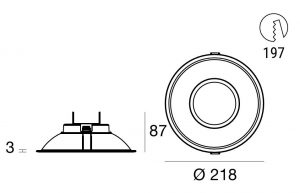

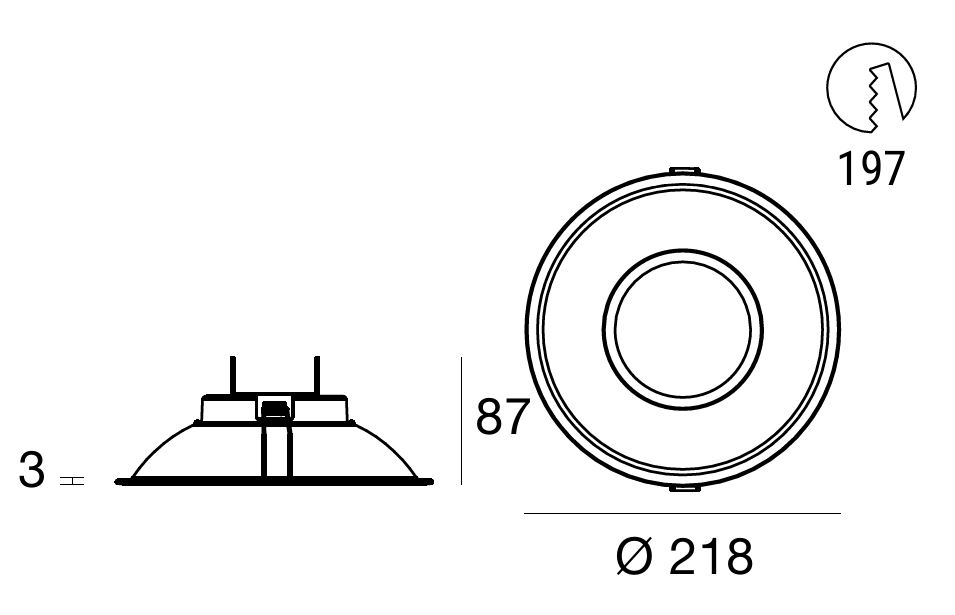

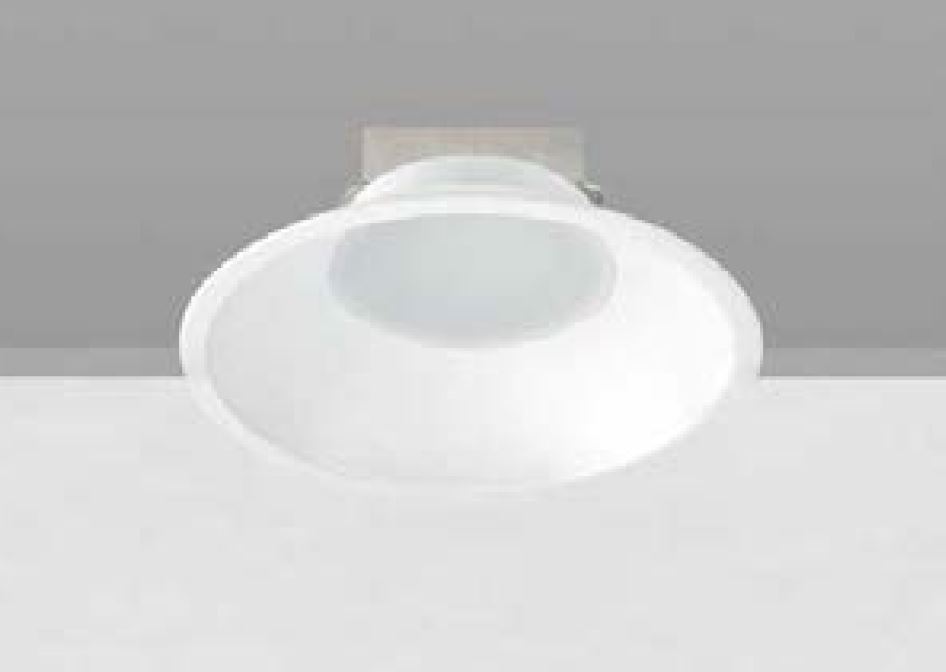

84024 |
1770 LM / 1377 LM |
T 3500K |
00 (Diffused) |
| WW (Asym Ww) |
