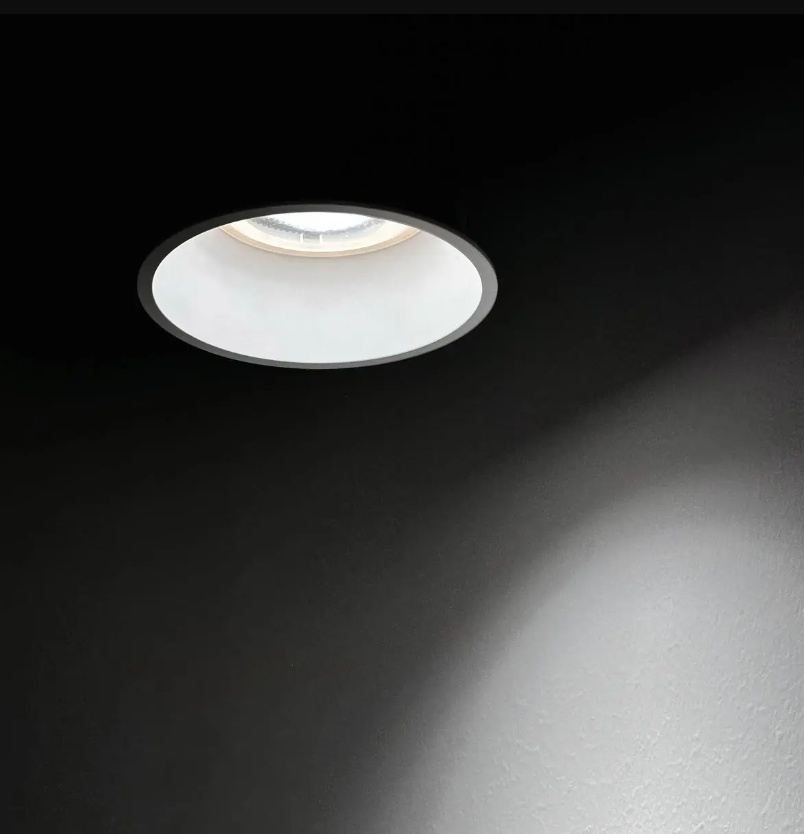

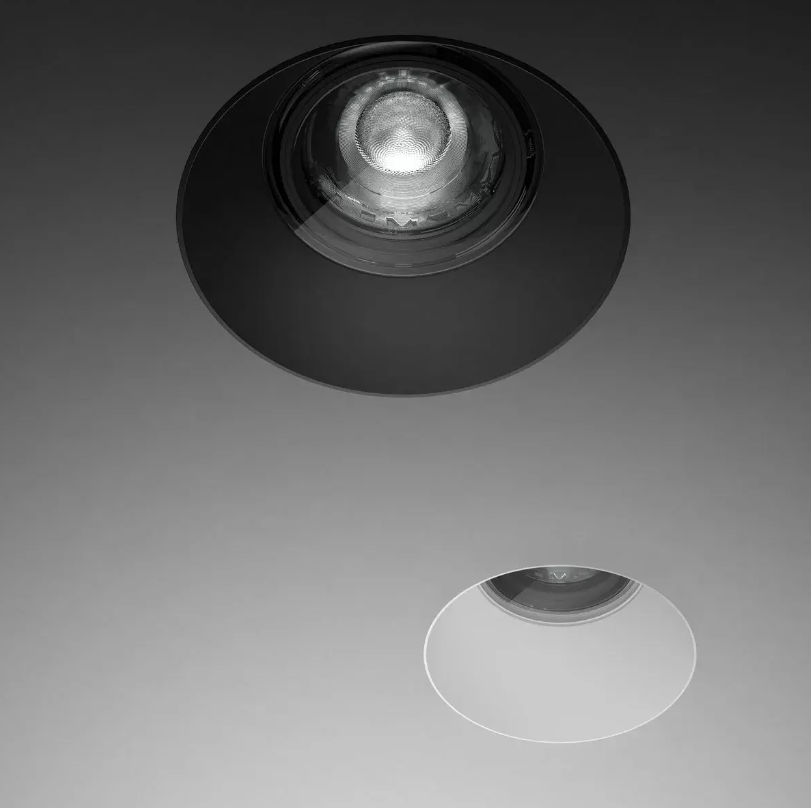

Modoc R은 깔끔한 마감과 고성능을 갖춘 표준형 다운라이트이며, 뛰어난 성능과 극대화된 시각적 편안함을 제공하기 위해 설계된 원형 다운라이트입니다. 고품질 소재로 제작된 컴팩트한 구조는 효율적이고 안정적인 조명을 보장합니다. 매우 슬림한 프레임 버전은 석고보드 타공 시 발생하는 결함을 우아하게 가려주어 미적으로 완벽한 결과를 선사합니다. 7가지의 다양한 직경과 5가지 광학 옵션을 갖춘 Modoc_R은 어떤 요구 사항에도 완벽하게 대응합니다. 화이트와 블랙 두 가지 마감 처리가 가능하며 On/Off, 0/1-10v, Dali 등의 제어 옵션을 제공하여 모든 용도에 유연성과 기능을 더합니다. Modoc_R과 함께 스타일, 성능, 그리고 실용성의 완벽한 조화를 경험해보세요


Discover Modoc_R, a round downlight designed to deliver exceptional performance and ensure maximum visual comfort. Its compact structure, made with high-quality materials, ensures effective and reliable illumination. The version with a frame, extremely slim, elegantly conceals any imperfections resulting from the hole in the plasterboard, ensuring an impeccable aesthetic result. With 7 different diameters and 5 available optics, Modoc_R perfectly adapts to your lighting needs. Available in two finishes, white and black, and with control options in on/off, 0/1-10V, and DALI, Modoc_R offers flexibility and functionality for every application. Discover the perfect combination of style, performance, and practicality with Modoc_R.





                         Size Watts  Code Color
Temp.
*CRI80		 Delivered
Lumen		 Optic


































2W
DC 630mA
CRI90/*80



























 C00771BBASP
 *A
2200K
 120 LM
(SP)		 18.8°
C00771BBMSP

 M
2700K		 145 LM
(SP)		 18.8°
C00771BBWSP

 W
3000K		 146 LM
(SP)		 18.8°
C00771BBTSP

 T
3500K		 146 LM
(SP)		 18.8°
C00771BBNSP

 N
4000K		 163 LM
(SP)		 18.8°
C00771BBAML

 *A
2200K		 127 LM
(ML)		 37.4°
C00771BBMML
 M
2700K
 138 LM
(ML) 		 37.4°
C00771BBWML

 W
3000K		 155 LM
(ML)		 37.4°
C00771BBTML

 T
3500K		 155 LM
(ML)		 37.4°
C00771BBNML

 N
4000K		 173 LM
(ML)		 37.4°
C00771BBAWF
 *A
2200K		 93 LM
(WF) 		 52.4°
C00771BBMWF M
2700K		 107 LM
(WF)		 52.4°
C00771BBWWF W
3000K		 114 LM
(WF)		 52.4°
C00771BBTWF T
3500K		 114 LM
(WF)		 52.4°
C00771BBNWF N
4000K		 127 LM
(WF)		 52.4°
C00771WHASP *A
2200K		 130 LM
(SP)		 18.8°
C00771WHMSP M
2700K		 157 LM
(SP)		 18.8°
C00771WHWSP

 W
3000K		 159 LM
(SP)		 18.8°
C00771WHTSP

 T
3500K		 159 LM
(SP)		 18.8°
C00771WHNSP

 N
4000K		 177 LM
(SP)		 18.8°
C00771WHAML
 *A
2200K		 137 LM
(ML)		 37.4°
C00771WHMML

 M
2200K		 149 LM
(ML)		 37.4°
C00771WHWML

 W
2700K		 168 LM
(ML)		 37.4°
C00771WHTML

 T
3000K		 168 LM
(ML)		 37.4°
C00771WHNML

 N
4000K		 187 LM
(ML)		 37.4°
C00771WHAWF
 *A
2200K		 101 LM
(WF)		 52.4°
C00771WHMWF
 M
2700K		 116 LM
(WF)		 52.4°
C00771WHWWF
 W
3000K		 124 LM
(WF)		 52.4°
C00771WHTWF
 T
3500K		 124 LM
(WF)		 52.4°
C00771WHNWF
 N
4000K		 138 LM
(WF)		 52.4°




















                         Size Watts  Code Color
Temp.
*CRI80		 Delivered
Lumen		 Optic































6W
DC 500mA
CRI90/*80



























 C00579BBASP
 *A
2200K
 475 LM
(SP)		 19.8°
C00579BBMSP

 M
2700K		 563 LM
(SP)		 19.8°
C00579BBWSP

 W
3000K		 584 LM
(SP)		 19.8°
C00579BBTSP

 T
3500K		 609 LM
(SP)		 19.8°
C00579BBNSP

 N
4000K		 623 LM
(SP)		 19.8°
C00579BBAFL

 *A
2200K		 406 LM
(FL)		 24.8°
C00579BBMFL
 M
2700K
 481 LM
(FL) 		 24.8°
C00579BBWFL

 W
3000K		 499 LM
(FL)		 24.8°
C00579BBTFL

 T
3500K		 520 LM
(FL)		 24.8°
C00579BBNFL

 N
4000K		 533 LM
(FL)		 24.8°
C00579BBAWF
 *A
2200K		 368 LM
(WF)		 52.6°
C00579BBMWF M
2700K		 436 LM
(WF)		 52.6°
C00579BBWWF W
3000K		 452 LM
(WF)		 52.6°
C00771BBTWF T
3500K		 471 LM
(WF)		 52.6°
C00579BBNWF N
4000K		 483 LM
(WF)		 52.6°
C00579WHASP *A
2200K		 517 LM
(SP)		 19.8°
C00579WHMSP M
2700K		 612 LM
(SP)		 19.8°
C00579WHWSP

 W
3000K		 634 LM
(SP)		 19.8°
C00579WHTSP

 T
3500K		 662 LM
(SP)		 19.8°
C00579WHNSP

 N
4000K		 678 LM
(SP)		 19.8°
C00579WHAFL
 *A
2200K		 441 LM
(FL)		 24.8°
C00579WHMFL

 M
2700K		 523 LM
(FL)		 24.8°
C00579WHWFL

 W
3000K		 542 LM
(FL)		 24.8°
C00579WHWFL

 T
3500K		 565 LM
(FL)		 24.8°
C00579WHNFL
 N
4000K		 579 LM
(FL)		 24.8°
C00579WHAWF
 *A
2200K		 400 LM
(WF)		 52.6°
C00579WHMWF
 M
2700K		 474 LM
(WF)		 52.6°
C00579WHWWF
 W
3000K		 491 LM
(WF)		 52.6°
C00579WHTWF
 T
3500K		 512 LM
(WF)		 52.6°
C00579WHNWF
 N
4000K		 525 LM
(WF)		 52.6°






















                         Size Watts  Code Color
Temp.
*CRI80		 Delivered
Lumen		 Optic




















































10W
DC 300mA
CRI90/
*CRI80



































































 C00580BBASP
 *A
2200K
 1023 LM
(SP)		 18.8°
C00580BBMSP

 M
2700K		 1111 LM
(SP)		 18.8°
C00580BBWSP

 W
3000K		 1164 LM
(SP)		 18.8°
C00580BBTSP

 T
3500K		 1175 LM
(SP)		 18.8°
C00580BBNSP

 N
4000K		 1210 LM
(SP)		 18.8°
C00580BBAFL

 *A
2200K		 1115 LM
(FL)		 28.8°
C00580BBMFL
 M
2700K
 1212 LM
(FL) 		 28.8°
C00580BBWFL

 W
3000K		 1269 LM
(FL)		 28.8°
C00580BBTFL

 T
3500K		 1282 LM
(FL)		 28.8°
C00580BBNFL
 N
4000K		 1320 LM
(FL)		 28.8°
C00580BBAMW
 *A
2200K		 1074 LM
(MW)		 42.8°
C00580BBMMW M
2700K		 1166 LM
(MW)		 42.8°
C00580BBWMW W
3000K		 1221 LM
(MW)		 42.8°
C00580BBTMW T
3500K		 1234 LM
(MW)		 42.8°
C00580BBNMW N
4000K		 1270 LM
(MW)		 42.8°
C00580BBAWF *A
2200K		 999 LM
(WF)		 52.2°
C00580BBMWF M
2700K		 1086 LM
(WF)		 52.2°
C00580BBWWF
 W
3000K		 1137 LM
(WF)		 52.2°
C00580BBTWF

 T
3500K		 1148 LM
(WF)		 52.2°
C00580BBNWF

 N
4000K		 1182 LM
(WF)		 52.2°
C00580BBADI
 *A
2200K		 411 LM
(DI)		 62°
C00580BBMDI

 M
2700K		 447 LM
(DI)		 62°
C00580BBWDI

 W
3000K		 468 LM
(DI)		 62°
C00580BBTDI

 T
3500K		 472 LM
(DI)		 62°
C00580BBNDI
 N
4000K		 486 LM
(DI)		 62°
C00580WHASP
 *A
2200K		 1112 LM
(SP)		 18.8°
C00580WHMSP
 M
2700K		 1208 LM
(SP)		 18.8°
C00580WHWSP
 W
3000K		 1265 LM
(SP)		 18.8°
C00580WHTSP
 T
3500K		 1278 LM
(SP)		 18.8°
C00580WHNSP
 N
4000K		 1315 LM
(SP)		 18.8°
C00580WHAFL
 A
2200K		 1212 LM
(FL)		 28.8°
C00580WHMFL
 M
2700K		 1317 LM
(FL)		 28.8°
C00580WHWFL
 W
3000K		 1379 LM
(FL)		 28.8°
C00580WHTFL
 T
3500K		 1393 LM
(FL)		 28.8°
C00580WHNFL
 N
4000K		 1434 LM
(FL)		 28.8°
C00580WHAMW
 A
2200K		 1167 LM
(MW)		 42.8°
C00580WHMMW
 M
2700K		 1268 LM
(MW)		 42.8°
C00580WHWMW
 W
3000K		 1327 LM
(MW)		 42.8°
C00580WHTMW
 T
3500K		 1341 LM
(MW)		 42.8°
C00580WHNMW
 N
4000K		 1381 LM
(MW)		 42.8°
C00580WHAWF
 A
2200K		 1086 LM
(WF)		 52.2°
C00580WHMWF
 M
2700K		 1180 LM
(WF)		 52.2°
C00580WHWWF
 W
3000K		 1236 LM
(WF)		 52.2°
C00580WHTWF
 T
3500K		 1248 LM
(WF)		 52.2°
C00580WHNWF
 N
4000K		 1285 LM
(WF)		 52.2°
C00580WHADI
 A
2200K		 706 LM
(DI)		 67.6°
C00580WHMDI
 M
2700K		 768 LM
(DI)		 67.6°
C00580WHWDI
 W
3000K		 804 LM
(DI)		 67.6°
C00580WHTDI
 T
3500K
 812 LM
(DI)		 67.6°
C00580WHNDI
 N
4000K		 836 LM
(DI)		 67.6°






























                         Size Watts  Code Color
Temp.
*CRI80		 Delivered
Lumen		 Optic








































18W
DC 550mA
CRI90/
*CRI80



































































 C00581BBAFL
 *A
2200K
 2036 LM
(FL)		 24.8°
C00581BBMFL

 M
2700K		 2247 LM
(FL)		 24.8°
C00581BBWFL

 W
3000K		 2293 LM
(FL)		 24.8°
C00581BBTFL

 T
3500K		 2435 LM
(FL)		 24.8°
C00581BBNFL

 N
4000K		 2384 LM
(FL)		 24.8°
C00581BBAML

 *A
2200K		 2066 LM
(ML)		 30.6°
C00581BBMML
 M
2700K
 2279 LM
(ML) 		 30.6°
C00581BBWML

 W
3000K		 2326 LM
(ML)		 30.6°
C00581BBTML

 T
3500K		 2470 LM
(ML)		 30.6°
C00581BBNML
 N
4000K		 2419 LM
(ML)		 30.6°
C00581BBAMW
 *A
2200K		 2145 LM
(MW)		 44°
C00581BBMMW M
2700K		 2367 LM
(MW)		 44°
C00581BBWMW W
3000K		 2416 LM
(MW)		 44°
C00581BBTMW T
3500K		 2565 LM
(MW)		 44°
C00581BBNMW N
4000K		 2512 LM
(MW)		 44°
C00581BBAWF *A
2200K		 2118 LM
(WF)		 53.2°
C00581BBMWF M
2700K		 2337 LM
(WF)		 53.2°
C00581BBWWF
 W
3000K		 2385 LM
(WF)		 53.2°
C00581BBTWF

 T
3500K		 2532 LM
(WF)		 53.2°
C00581BBNWF

 N
4000K		 2480 LM
(WF)		 53.2°
C00581BBADI
 *A
2200K		 765 LM
(DI)		 70.4°
C00581BBMDI

 M
2700K		 841 LM
(DI)		 70.4°
C00581BBWDI

 W
3000K		 858 LM
(DI)		 70.4°
C00581BBTDI

 T
3500K		 910 LM
(DI)		 70.4°
C00581BBNDI
 N
4000K		 892 LM
(DI)		 70.4°
C00581WHAFL
 *A
2200K		 2213 LM
(FL)		 24.8°
C00581WHMFL
 M
2700K		 2442 LM
(FL)		 24.8°
C00581WHWFL
 W
3000K		 2492 LM
(FL)		 24.8°
C00581WHTFL
 T
3500K		 2646 LM
(FL)		 24.8°
C00581WHNFL
 N
4000K		 2592 LM
(FL)		 24.8°
C00581WHAML
 A
2200K		 2245 LM
(ML)		 30.6°
C00581WHMML
 M
2700K		 2477 LM
(ML)		 30.6°
C00581WHWML
 W
3000K		 2528 LM
(ML)		 30.6°
C00581WHTML
 T
3500K		 2685 LM
(ML)		 30.6°
C00581WHNML
 N
4000K		 2629 LM
(ML)		 30.6°
C00581WHAMW
 A
2200K		 2332 LM
(MW)		 44°
C00581WHMMW
 M
2700K		 2573 LM
(MW)		 44°
C00581WHWMW
 W
3000K		 2626 LM
(MW)		 44°
C00581WHTMW
 T
3500K		 2789 LM
(MW)		 44°
C00581WHNMW
 N
4000K		 2731 LM
(MW)		 44°
C00581WHAWF
 A
2200K		 2302 LM
(WF)		 53.2°
C00580WHMWF
 M
2700K		 2540 LM
(WF)		 53.2°
C00580WHWWF
 W
3000K		 2592 LM
(WF)		 53.2°
C00580WHTWF
 T
3500K		 2753 LM
(WF)		 53.2°
C00580WHNWF
 N
4000K		 2696 LM
(WF)		 53.2°
C00581WHADI
 A
2200K		 1556 LM
(DI)		 78.4°
C00581WHMDI
 M
2700K		 1711 LM
(DI)		 78.4°
C00581WHWDI
 W
3000K		 1746 LM
(DI)		 78.4°
C00581WHTDI
 T
3500K
 1851 LM
(DI)		 78.4°
C00581WHNDI
 N
4000K		 1816 LM
(DI)		 78.4°




































                         Size Watts  Code Color
Temp.
*CRI80		 Delivered
Lumen		 Optic



























26W
DC 750mA
CRI90/
*CRI80



 C00582BBASP
 *A
2200K
 2648 LM
(SP)		 18.6°
C00582BBMSP

 M
2700K		 2824 LM
(SP)		 18.6°
C00582BBWSP

 W
3000K		 2941 LM
(SP)		 18.6°
C00582BBTSP

 T
3500K		 3041 LM
(SP)		 18.6°
C00582BBNSP

 N
4000K		 3100 LM
(SP)		 18.6°
C00582BBAFL

 *A
2200K		 2658 LM
(FL)		 26.8°
C00582BBMFL
 M
2700K
 2834 LM
(FL) 		 26.8°
C00582BBWFL

 W
3000K		 2952 LM
(FL)		 26.8°
C00582BBTFL

 T
3500K		 3053 LM
(FL)		 26.8°
C00582BBNFL
 N
4000K		 3112 LM
(FL)		 26.8°
C00582BBAMW
 *A
2200K		 2692 LM
(MW)		 41.6°
C00582BBMMW M
2700K		 2870 LM
(MW)		 41.6°
C00582BBWMW W
3000K		 2990 LM
(MW)		 41.6°
C00582BBTMW T
3500K		 3091 LM
(MW)		 41.6°
C00582BBNMW N
4000K		 3151 LM
(MW)		 41.6°
C00582BBAWF *A
2200K		 2576 LM
(WF)		 51°
C00528BBMWF M
2700K		 2746 LM
(WF)		 51°
C00582BBWWF
 W
3000K		 1137 LM
(WF)		 51°
C00582BBTWF

 T
3500K		 2958 LM
(WF)		 51°
C00582BBNWF

 N
4000K		 3015 LM
(WF)		 51°
C00582BBADI
 *A
2200K		 1055 LM
(DI)		 81.8°
C00582BBMDI

 M
2700K		 1151 LM
(DI)		 81.8°
C00582BBWDI

 W
3000K		 1199 LM
(DI)		 81.8°
C00582BBTDI

 T
3500K		 1240 LM
(DI)		 81.8°
C00582BBNDI
 N
4000K		 1264 LM
(DI)		 81.8°
C00582WHASP
 *A
2200K		 2879 LM
(SP)		 18.6°
C00582WHMSP
 M
2700K		 3069 LM
(SP)		 18.6°
C00582WHWSP
 W
3000K		 3197 LM
(SP)		 18.6°
C00582WHTSP
 T
3500K		 3306 LM
(SP)		 18.6°
C00582WHNSP
 N
4000K		 3370 LM
(SP)		 18.6°
C00582WHAFL
 A
2200K		 2890 LM
(FL)		 26.8°
C00582WHMFL
 M
2700K		 3081 LM
(FL)		 26.8°
C00582WHWFL
 W
3000K		 3209 LM
(FL)		 26.8°
C00582WHTFL
 T
3500K		 3318 LM
(FL)		 26.8°
C00582WHNFL
 N
4000K		 3382 LM
(FL)		 26.8°
C00582WHAMW
 A
2200K		 2926 LM
(MW)		 41.6°
C00582WHMMW
 M
2700K		 3119 LM
(MW)		 41.6°
C00582WHWMW
 W
3000K		 3249 LM
(MW)		 41.6°
C00582WHTMW
 T
3500K		 3360 LM
(MW)		 41.6°
C00582WHNMW
 N
4000K		 3425 LM
(MW)		 41.6°
C00582WHAWF
 A
2200K		 2800 LM
(WF)		 51°
C00582WHMWF
 M
2700K		 2985 LM
(WF)		 51°
C00582WHWWF
 W
3000K		 3109 LM
(WF)		 51°
C00582WHTWF
 T
3500K		 3215 LM
(WF)		 51°
C00582WHNWF
 N
4000K		 3277 LM
(WF)		 51°
C00582WHADI
 A
2200K		 2145 LM
(DI)		 81.8°
C00582WHMDI
 M
2700K		 2340 LM
(DI)		 81.8°
C00582WHWDI
 W
3000K		 2437 LM
(DI)		 81.8°
C00582WHTDI
 T
3500K
 2520 LM
(DI)		 81.8°
C00582WHNDI
 N
4000K		 2569 LM
(DI)		 81.8°






























                         Size Watts  Code Color
Temp.
*CRI80		 Delivered
Lumen		 Optic







37W
DC 1100mA
CRI90/
*CRI80

 C00583BBASP
 *A
2200K
 3977 LM
(SP)		 19°
C00583BBMSP

 M
2700K		 4226 LM
(SP)		 19°
C00583BBWSP

 W
3000K		 4384 LM
(SP)		 19°
C00583BBTSP

 T
3500K		 4516 LM
(SP)		 19°
C00583BBNSP

 N
4000K		 4647 LM
(SP)		 19°
C00583BBAFL

 *A
2200K		 4170 LM
(FL)		 25.6°
C00583BBMFL
 M
2700K
 4432 LM
(FL) 		 25.6°
C00582BBWFL

 W
3000K		 4598 LM
(FL)		 25.6°
C00583BBTFL

 T
3500K		 4736 LM
(FL)		 25.6°
C00583BBNFL
 N
4000K		 4874 LM
(FL)		 25.6°
C00583BBAML
 *A
2200K		 4133 LM
(ML)		 37.6°
C00583BBMML M
2700K		 4393 LM
(ML)		 37.6°
C00583BBWML W
3000K		 4557 LM
(ML)		 37.6°
C00583BBTML T
3500K		 4694 LM
(ML)		 37.6°
C00583BBNML N
4000K		 4831 LM
(ML)		 37.6°
C00583BBAWF *A
2200K		 4088 LM
(WF)		 55.8°
C00583BBMWF M
2700K		 4345 LM
(WF)		 55.8°
C00583BBWWF
 W
3000K		 4508 LM
(WF)		 55.8°
C00583BBTWF

 T
3500K		 4643 LM
(WF)		 55.8°
C00583BBNWF

 N
4000K		 4778 LM
(WF)		 55.8°
C00583BBADI
 *A
2200K		 1573 LM
(DI)		 86.4°
C00583BBMDI

 M
2700K		 1672 LM
(DI)		 86.4°
C00583BBWDI

 W
3000K		 1734 LM
(DI)		 86.4°
C00583BBTDI

 T
3500K		 1786 LM
(DI)		 86.4°
C00583BBNDI
 N
4000K		 1838 LM
(DI)		 86.4°
C00583WHASP
 *A
2200K		 4322 LM
(SP)		 19°
C00583WHMSP
 M
2700K		 4594 LM
(SP)		 19°
C00583WHWSP
 W
3000K		 4765 LM
(SP)		 19°
C00583WHTSP
 T
3500K		 4908 LM
(SP)		 19°
C00583WHNSP
 N
4000K		 5051 LM
(SP)		 19°
C00583WHAFL
 A
2200K		 4533 LM
(FL)		 25.6°
C00583WHMFL
 M
2700K		 4818 LM
(FL)		 25.6°
C00583WHWFL
 W
3000K		 4997 LM
(FL)		 25.6°
C00583WHTFL
 T
3500K		 5147 LM
(FL)		 25.6°
C00583WHNFL
 N
4000K		 5297 LM
(FL)		 25.6°
C00583WHAML
 A
2200K		 4493 LM
(MW)		 37.6°
C00583WHMML
 M
2700K		 4775 LM
(MW)		 37.6°
C00583WHWML
 W
3000K		 4953 LM
(MW)		 37.6°
C00583WHTML
 T
3500K		 5102 LM
(MW)		 37.6°
C00583WHNML
 N
4000K		 5251 LM
(MW)		 37.6°
C00583WHAWF
 A
2200K		 4444 LM
(WF)		 55.8°
C00583WHMWF
 M
2700K		 4723 LM
(WF)		 55.8°
C00583WHWWF
 W
3000K		 4899 LM
(WF)		 55.8°
C00583WHTWF
 T
3500K		 5046 LM
(WF)		 55.8°
C00583WHNWF
 N
4000K		 5193 LM
(WF)		 55.8°
C00583WHADI
 A
2200K		 3197 LM
(DI)		 86.4°
C00583WHMDI
 M
2700K		 3398 LM
(DI)		 86.4°
C00583WHWDI
 W
3000K		 3525 LM
(DI)		 86.4°
C00583WHTDI
 T
3500K
 3631 LM
(DI)		 86.4°
C00583WHNDI
 N
4000K		 3736 LM
(DI)		 86.4°
